Intake Temps?

johnwiki

This is really just a question of morbid curiosity, but what kind of temps are you guys seeing out of your intakes? Anyone feel free to chime in, stock or otherwise. I was watching my temps today and was just wondering what other people are seeing.

__________________
Mods: Z1 CAI, Fast Intentions HFC + Cat Back, 4.08 Gears + VLSD Swap, Southbend DxD Clutch+lightweight flywheel = 310 HP 285 ft/lbs

nomodsjk

Depends on the temperature outside and if you're idling or cruising but right now I'm in the 90's when going slow or stopped and about 10 degrees less when on the highway

2011 Nismo#91

Yeah ~90C in traffic with CAI and air temp was in the mid 80s F. Cruising it's just about 10C or less above air temps. I think the high idle temps are because of heat transfer from the intake tubes in the engine bay.

Chuck33079

How are you monitoring intake temps?

__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent

Japanjay

Dash command allows AIT, it is monitored on the cars can bus.

johnwiki

Yea when the car says like in the 70's outside i usually see mid to high 80's. And i have a bluetooth dongle and dashcommand.

__________________
Mods: Z1 CAI, Fast Intentions HFC + Cat Back, 4.08 Gears + VLSD Swap, Southbend DxD Clutch+lightweight flywheel = 310 HP 285 ft/lbs

SouthArk370Z

FWIW, that temperature reading comes from the MAF sensor.

__________________
Steering Lock Links - Search The370Z Bookmarklet - FSM @ NICOclub
Mankind has progressed past the need for war but we haven't evolved that far. - NachoMahma

Mandingo

Ever since installing an engine oil cooler, my intake temps increased by about 5-8 degrees F. While cruising on the highway my IAT was about 14 degrees above ambient and about 24 above ambient while city driving.

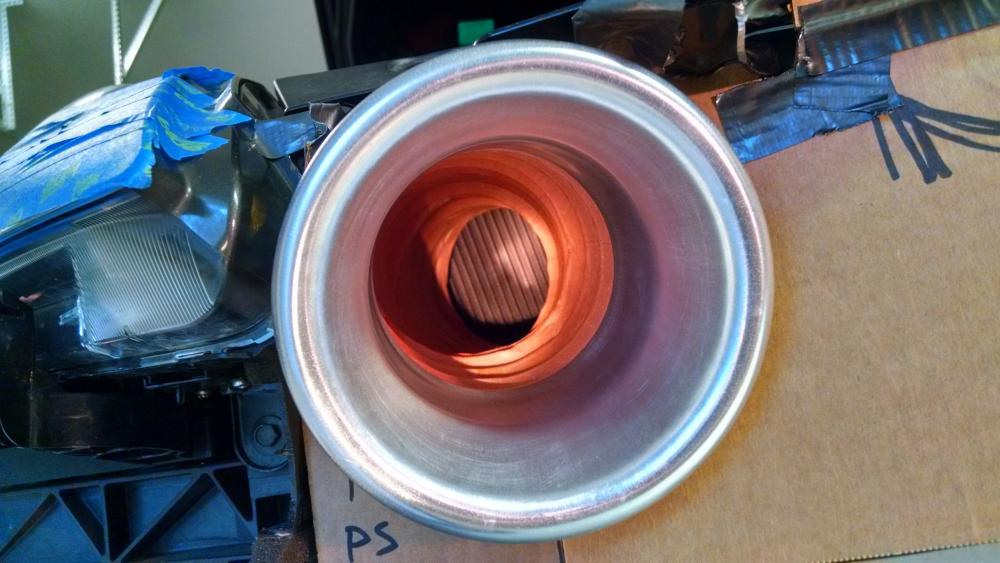

I modified the stock intake boxes to draw air from inside the front of the nose instead of from above the radiator and oil cooler. Now IAT is 5 degrees F above ambient on the highway and 8 degrees above ambient in city driving.

This has made a huge difference in responsiveness on hot days, especially off the line in city driving. The nose area doesn't fill up with hot air as much while sitting at a red light or in slow moving traffic. I'll post a pic when I get home.

Edit: pictures

__________________
some mods

Japanjay

That's the sensor that reads it, which is relayed to the ECU across the can bus. Dash command isn't hardlined directly to the MAF sensor as would say a DEFI gauge that reads oil pressure that would be wired directly to the oil sending unit.
