Momo steering Wheel with Works Bell HUB and QD

Corsairprime

Fellow 370Z Guys and Girls:

I just wanted to share a few pictures of the newly installed Momo Steering Wheel. I used the Works Bell Hub and Rapfix Quick Disconnect. I also got the 370Z STEERING WHEEL CONTROL RELOCATION BRACKET kit from Lost In Transition, LLC. All of the parts work great together. There is plenty of room for all the cables and the resistors for the airbag within the hub. Just take your time. There will be a cable or two that will need a different plug adapted to it. For me the horn attachment to the large grey plug needed changing to a larger connector to make the horn work. The additional cable for me was in the QD hub itself that connects to the Momo horn buttons.. A slightly wider spade plug needed to be changed out from the existing narrow one. Fortunately both kits have some donor wiring with plugs that can be used for this.

Not sure why, but two of the images came thru sideways. Oh well.

The Hub without wheel:

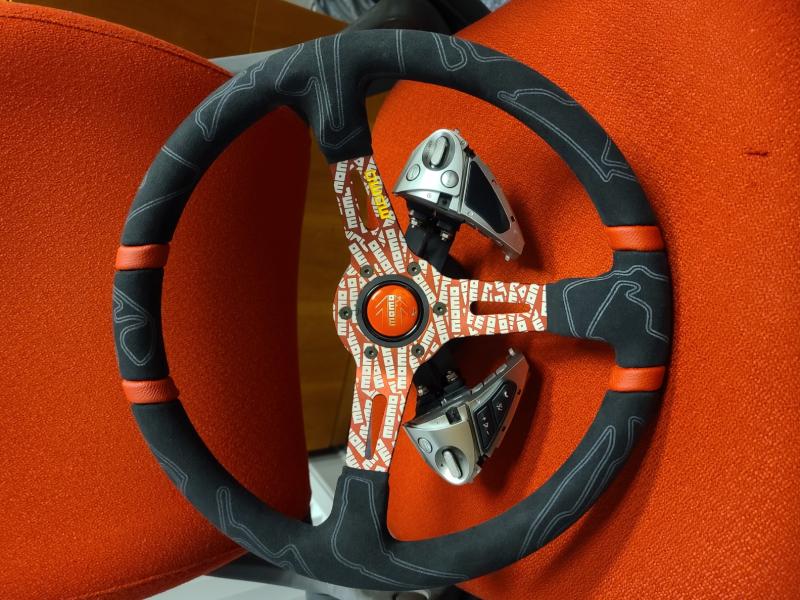

The hub with wheel:

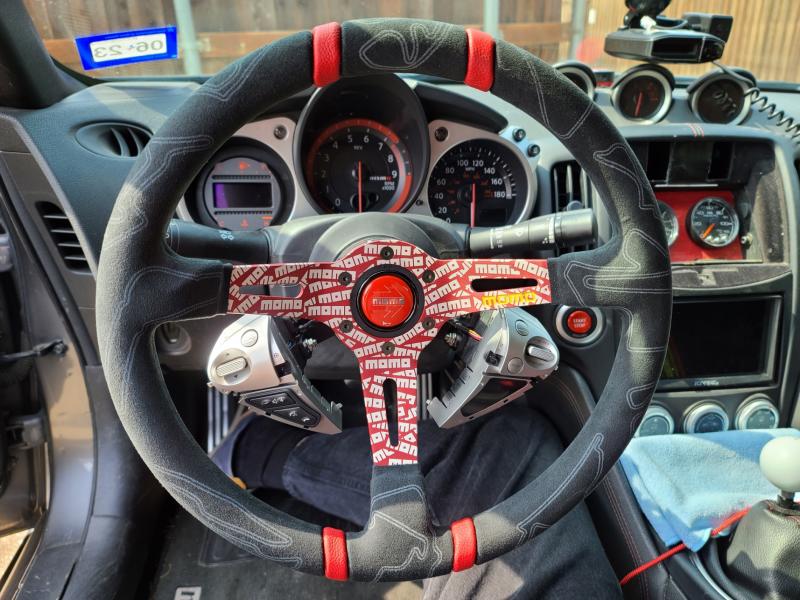

The whole thing in the car:

__________________
Corsairprime
2014 Nismo #462, GunMetal Grey, GT-R Start Button, AAM S-Line/R-Line intake and S-Line exhaust, Berk HFCs, Osiris Tuned at JoTech
