Issues hooking up an AEM oil pressure gauge.

Mozen · 08-30-2014, 11:50 AM

Hello. Im having issues getting my AEM gauge to cut on and was hoping someone could provide some advice. I posted in the DIY but never heard anything back.

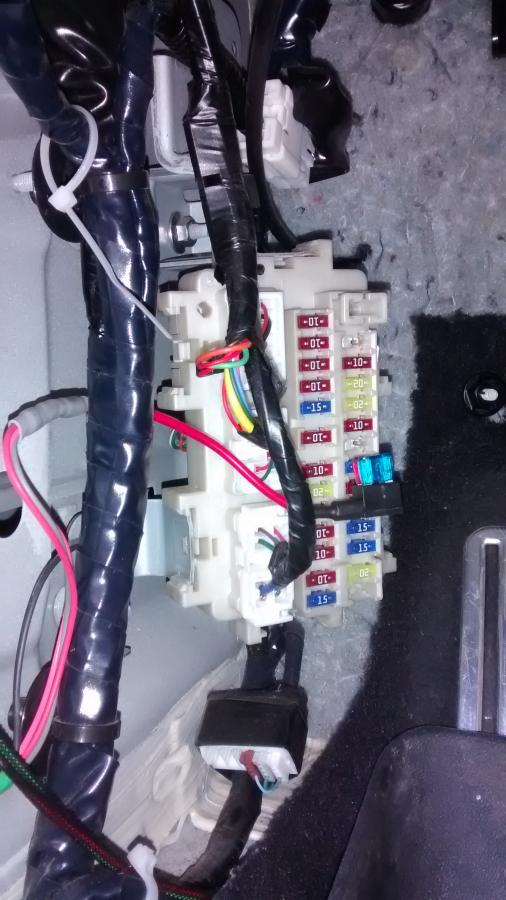

At this point i have tried swapping the add a circuit double checked connections just about every single circuit point...IDK.

I just cant get the gauge to read or light up.

Any help would be appreciated.

GaleForce · 08-30-2014, 04:13 PM

How's your ground connection?

Mozen · 08-31-2014, 01:02 AM

Its to the stud behind the wire bundle. Now that you mentioned ground tho ill go try a few diff spots.

N8GTOL · 08-31-2014, 09:51 PM

Also, make sure you don't have any hair line cracks in any of the fuses...they can be damn hard to see sometimes. I know you said you double checked all the connections but have you verified that you are actually getting power at your fuse box tap?

Mozen · 09-01-2014, 01:08 AM

Its a good idea as well N8gtol, ill just replace just incase and then look at the old ones carefully when i do some troubleshooting today.

megalapagas · 09-01-2014, 03:32 AM

Question? Can an Equus Oil Pressure gauge work? Reason I ask is because it reads from 0-100 psi and idk of i need a gauge that reads "Higher"???

aszyd · 09-01-2014, 10:14 AM

Quote:

Originally Posted by megalapagas

Question? Can an Equus Oil Pressure gauge work? Reason I ask is because it reads from 0-100 psi and idk of i need a gauge that reads "Higher"???

No. Our car cold starts at over 100 PSI and only drops once the oil has warmed up. Then again, I suppose it will work if you are OK with knowing not to drive aggressively until it reads lower than 100 PSI. I figure the big reason for this gauge is to make sure it does not drop too low, rather than too high.

megalapagas · 09-02-2014, 02:30 AM

Quote:

Originally Posted by aszyd

No. Our car cold starts at over 100 PSI and only drops once the oil has warmed up. Then again, I suppose it will work if you are OK with knowing not to drive aggressively until it reads lower than 100 PSI. I figure the big reason for this gauge is to make sure it does not drop too low, rather than too high.

Hey man 'ppreciate the tip

SwissCheese · 09-02-2014, 08:51 PM

Which fuse did you connect it to?

martin82 · 09-02-2014, 11:42 PM

Did u hook up 12 volt and illumination too?

SouthArk370Z · 09-03-2014, 07:21 AM

Quote:

Originally Posted by Mozen

Its a good idea as well N8gtol, ill just replace just incase and then look at the old ones carefully when i do some troubleshooting today.

Use an ohmmeter or continuity checker. Eyeballing fuses is hit or miss. You can find a cheap VOM/DMM for $10-20.
