Default DIY: Sport Spoiler Removal

Figured I'd make a thread since a lot of people break theirs removing it.

Step 1: Remove plastic cover in hatch. (Steps 1-6 in link below)

DIY: Weight reduction/Fix hatch not opening issue

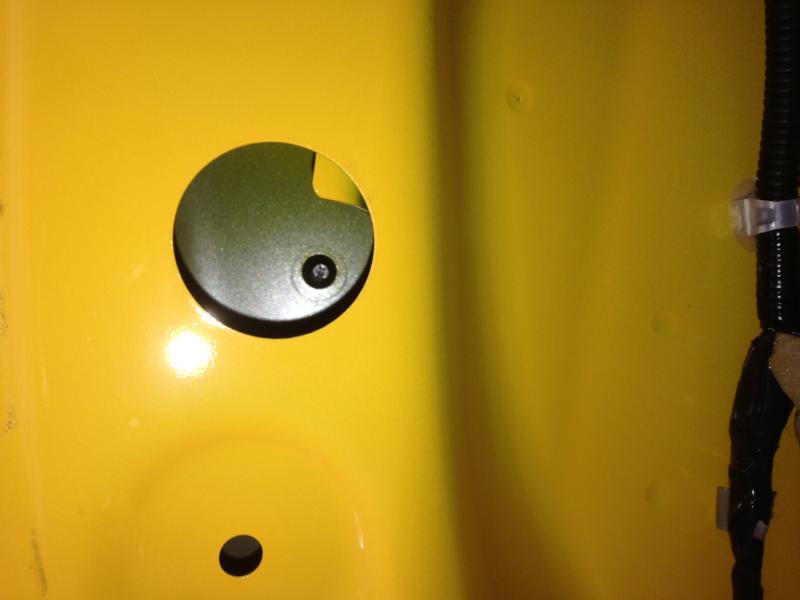

Step 2: Remove the 2 bolts and 2 nuts holding the spoiler in. They are in the same hole and same horizontal plane, one is facing forward and the other back.

Forward

Back


Step 3: Use fishing line to cut the end of the double sided tape. Slide it under and start moving it back and forth. You may need to use something to prop the spoiler up a fraction of an inch as you get closer to the inside. You only need to cut it this way a little past where the spoiler base dips in. Cut both sides.



Step 4:Pry up one of the ends with something (I used a couple of these Amazon.com : Pedro's Bicycle Tire Lever (Pair) : Bike Hand Tools : Sports & Outdoors) and use a knife or utility blade to start working toward the middle cutting the double sided tape. Don't lift very much, just enough to cut the tape and move on. You can start popping the clips out as you move across, but don't lift it any more than a hand width up until all the clips are popped and tape cut.

Step 5: Once all the tape is cut, start working the spoiler straight up from the body. I started at one end and slid my hand under and worked it across to pop the remaining clips after step 4.

Picture of the Clips

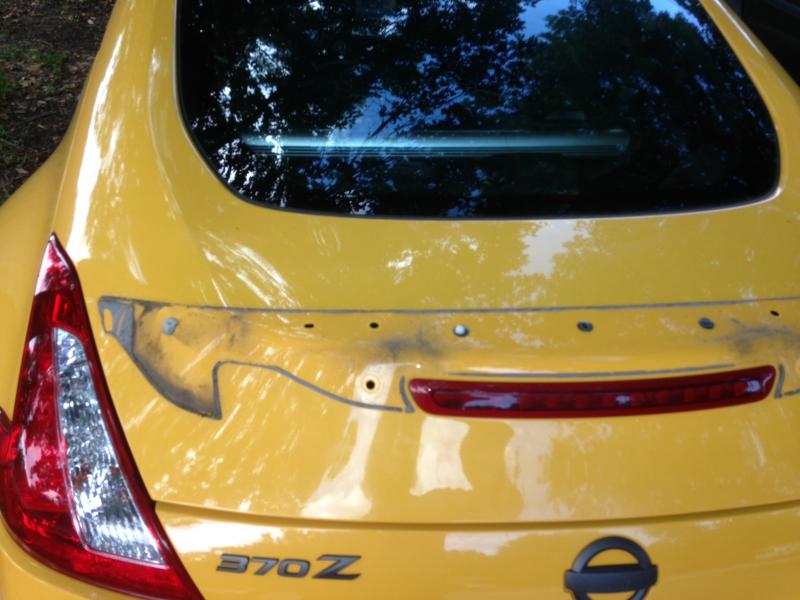

There are 2 different clips on the ends. Notice the tape pattern you will need to cut.


Step 6: Clean it up and move on with your life.

JARblue, cooltoy, Zbrah and 7 others like this.

Last edited by mkotali2; 06-19-2014 at 10:22 AM.
mkotali2 is offline   Reply With Quote
Old 06-18-2014, 10:20 PM   #2 (permalink)
Base Member

Join Date: Sep 2013
Location: San Antonio
Posts: 72
Drives: 2013 Sport AT
Rep Power: 14
bkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant futurebkjunk has a brilliant future
Default

I got mine of without breaking it and honestly thought setup number 6, cleanup, was the toughest pat. Go easy on the adhesive remover. I did not read the fine print, it is harmful to plastic and I managed to fog up one of my rear taillights a bit.
Trutactix likes this.
bkjunk is offline   Reply With Quote
Old 06-19-2014, 10:22 AM   #3 (permalink)
Base Member

Join Date: Jan 2014
Location: texas
Posts: 13
Drives: 09 370z
Rep Power: 11
mkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to behold
Default

Quote:
Originally Posted by bkjunk View Post
I got mine of without breaking it and honestly thought setup number 6, cleanup, was the toughest pat. Go easy on the adhesive remover. I did not read the fine print, it is harmful to plastic and I managed to fog up one of my rear taillights a bit.
Agreed, cleanup took me over an hour and I used about half a bottle of goo gone and some rubbing compound to get it to look clean.
mkotali2 is offline   Reply With Quote
Old 02-10-2015, 10:18 AM   #4 (permalink)
Oso
Base Member

Oso's Avatar

Join Date: Dec 2014
Location: all over texas
Posts: 57
Drives: 09 370z Sport
Rep Power: 11
Oso is on a distinguished road
Default

How did you plug the holes after removal? Or did you take it to a body shop?
Oso is offline   Reply With Quote
Old 02-10-2015, 10:25 AM   #5 (permalink)
A True Z Fanatic

JARblue's Avatar

Join Date: Mar 2011
Location: Austin, TX
Age: 43
Posts: 36,450
Drives: 11 Z34, 98 E36 M3
Rep Power: 2684440
JARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond repute
Default

Quote:
Originally Posted by Oso View Post
How did you plug the holes after removal? Or did you take it to a body shop?

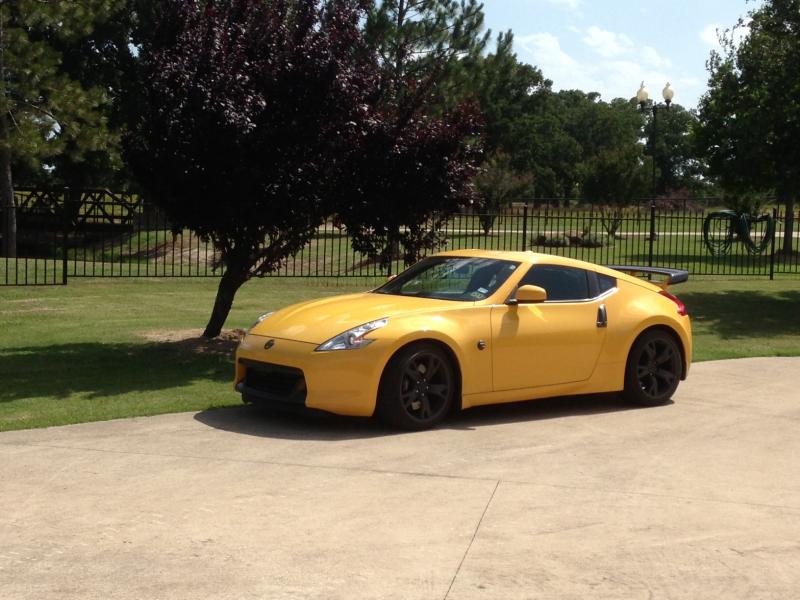

You can see in the last photo, he installed another wing. Likely using the same holes. I think that most people removing their spoiler are looking to install another one.

If you want to remove the spoiler entirely, it may be easier to find someone with the same color hatch in a base model and trade them your hatch with spoiler for their hatch w/o spoiler.

Nice DIY, OP. I think that most people who break it during removal just get impatient or don't use the fishing line method. That tape is strong stuff.
__________________

2011 370Z 6MT Sport Gun Metallic | ARC | CJM | Ecutek | FI | Fujimura | R2C | SPL | Stillen | TWM | Z1 | ZSpeed |
JARblue is offline   Reply With Quote
Old 02-10-2015, 11:52 AM   #6 (permalink)
A True Z Fanatic

Zbrah's Avatar

Join Date: May 2013
Location: The370Z.com
Posts: 4,956
Drives: 370Z
Rep Power: 5452
Zbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond reputeZbrah has a reputation beyond repute
Default

Thanks and repped! This will come in handy soon.
__________________
Zbrah is offline   Reply With Quote
Old 02-10-2015, 11:47 PM   #7 (permalink)
Base Member

Join Date: Jan 2014
Location: texas
Posts: 13
Drives: 09 370z
Rep Power: 11
mkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to beholdmkotali2 is a splendid one to behold
Default

Quote:
Originally Posted by JARblue View Post
You can see in the last photo, he installed another wing. Likely using the same holes. I think that most people removing their spoiler are looking to install another one.

If you want to remove the spoiler entirely, it may be easier to find someone with the same color hatch in a base model and trade them your hatch with spoiler for their hatch w/o spoiler.

Nice DIY, OP. I think that most people who break it during removal just get impatient or don't use the fishing line method. That tape is strong stuff.
Yea, I picked up an evo-r high wing with CF top for $300 off ebay and it installed into the same holes. There are a lot of holes from the clips so plugging it would not look good unless you're going to get it smoothed and painted.

The tape is tough stuff and you definitely need to cut it with fishing line then a blade of some type. I can see where people see it starting to separate and think they can just muscle it off, but the tension will build and break it once you get toward the middle.
2011370zblue likes this.
mkotali2 is offline   Reply With Quote
Old 02-13-2015, 02:29 PM   #8 (permalink)
A True Z Fanatic

carlitos_370z's Avatar

Join Date: Jul 2013
Location: Puerto Rico
Posts: 7,157
Drives: 13 Nissan 370Z SP M6
Rep Power: 7586
carlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond reputecarlitos_370z has a reputation beyond repute
Default

Nice DIY dude!!! in for future action hahaha!!

*Im planing to install a GT Wing someday in my life loool!!*
carlitos_370z is offline   Reply With Quote
Old 04-14-2016, 03:48 AM   #9 (permalink)
Base Member

Join Date: Mar 2016
Location: sacramento
Posts: 3
Drives: 09 Nissan 370z
Rep Power: 9
LashPash is on a distinguished road
Default

thank you very much, i am installing my AMUSE wing...This helped alot.
LashPash is offline   Reply With Quote
Old 04-14-2016, 03:49 AM   #10 (permalink)
Base Member

Join Date: Mar 2016
Location: sacramento
Posts: 3
Drives: 09 Nissan 370z
Rep Power: 9
LashPash is on a distinguished road
Default

so if someone wanna buy my OEM wing hit me up, its metallic blue..
LashPash is offline   Reply With Quote
Old 08-11-2016, 08:59 AM   #11 (permalink)
Banned

Join Date: Jan 2016
Location: pistolvania
Posts: 1,387
Drives: 2013 g37x 2014 370z
Rep Power: 0
madeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond reputemadeinjapan has a reputation beyond repute
Default

the ends have the most glue fyi

and 2 of the clips can be reached where the nuts/bolts are inside

squirt goo gone around the whole outer edge helps
madeinjapan is offline   Reply With Quote
Old 08-29-2017, 04:10 PM   #12 (permalink)
Base Member

Join Date: Jan 2017
Location: Northern Virginia
Posts: 2
Drives: 370Z
Rep Power: 8
Al3x-22 is on a distinguished road
Default

Quote:
Originally Posted by LashPash View Post
thank you very much, i am installing my AMUSE wing...This helped alot.
Did the holes on your Amuse wing line up with the
Factory spoiler holes ?
Al3x-22 is offline   Reply With Quote
Old 07-31-2018, 09:47 AM   #13 (permalink)
Base Member

Join Date: Oct 2014
Location: Toronto, Canada
Posts: 126
Drives: '10 370z
Rep Power: 240
l2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond reputel2iceman has a reputation beyond repute
Default

Thanks for this! I removed the oem spoiler over the weekend using this guide.

Stupid me, I was cutting with a blade, and I scratched up the trunk quite a bit haha so be careful! It'll be covered by my duckbill, or the sport spoiler if I were to replace it in the future, so not a big deal, but figured I'd mention it here (I thought I had the blade angled enough to not touch the trunk, but clearly I didn't). I got two scratches deep enough it went through to the metal, so I'll be applying touch up paint before installing the new spoiler.

And removing the original double-sided tape is tough! I'm using a mix of goo-gone, heat gun, rubbing with my fingers, and repeat! I'm about 80% done, all the large pieces have been removed, just need to work out the fine lines remaining. I've parked my car in the sun today (normally it's hiding in the garage), so it should be much easier to take out when I get home.
l2iceman is offline   Reply With Quote
Old 09-07-2018, 06:23 PM   #14 (permalink)
A True Z Fanatic

BoneZ's Avatar

Join Date: May 2015
Location: Atlanta, GA
Age: 53
Posts: 9,299
Drives: 2012 Blue BallZ
Rep Power: 2684382
BoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond reputeBoneZ has a reputation beyond repute
Default

A heat gun is your friend.
__________________
“Happiness is having a large, loving, caring, close-knit family in another city.”-George Burns
