Default Harry's Laptimer + Kiwi Plex Wifi Setup

I hope someone who has this setup could help me out a bit.

I have Harry's Laptimer with Kiwi Plex Wifi Setup and want to know the refresh rate setting you guys found that works well with the RPM and throttle position.

Here's a link on the Harry's Laptimer Forum that discuss this topic, but I couldn't find our 370z on that list. Any help would be great.

Link

The OBD update rate varies a lot by car connected to. LapTimer is optimized to get the best possible update rate for RPM and Throttle position. All other values are retrieved at lower update rates to get the best for RPM / Throttle. This is what I have seen so far:

2005 Porsche 911 C2 1.4Hz
2011 Porsche 911 GTS 7.0Hz
2007 Volvo C30 2.0d 6.0Hz

Please let me know what you have seen.

- Harry

-------------- Full list collected from thread --------------
2005 Porsche 911 C2 - 1.4 Hz
2011 Porsche 911 GTS - 7.0 Hz (10-11Hz with OBDLink)
2007 Volvo C30 2.0d - 6.0 Hz
2005 Clio Sport - 0.8 Hz
2006 Renault Clio C - 10.0 Hz
2011 BMW 335i - 8.0 Hz
2005 Lotus Elise - 2.0 Hz
2001 BMW 325Ci - 1.3 Hz
2009 Corvette - 8.0 Hz
2003 Honda S2000 - 1.5 Hz
2011 Ford GT500 - 5.5-6.0 Hz
2010 Nissan GTR - 3.5 Hz
2008 VW Polo 1.9 TDi - 1.4 Hz
2008 997 Carrera S - 1.6 Hz
2008 Honda S2000 - 10.0 Hz
2003 Porsche C4S - 1.6 Hz
2008 Mitsubishi Evolution X - 3.0 Hz
2011 Porsche Boxster Spyder - 3.0 Hz
2006 Audi RS4 B7 (V8) - 8.4 Hz
2010 Audi TT RS - 8.1 Hz
__________________
Magnetic Black 2010 370z
Scruffydog's Journal
scruffydog is offline   Reply With Quote
Old 05-26-2013, 08:04 PM   #2 (permalink)
A True Z Fanatic

scruffydog's Avatar

Join Date: Jan 2009
Location: Nor Cal
Posts: 1,113
Drives: with his eyes close
Rep Power: 717
scruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond repute
Default

Actually I'm not even sure if there's anything I could do to compensate for the refresh rate. I just know that when I overlay the video with the throttle position and RPM it doesn't align with the sound. The only place I can see to change settings for the OBD Kiwi in Harry's Laptimer is shown below:


Do you guys have the same settings?

An example of the refresh rate I was talking about earlier is shown here:
__________________
Magnetic Black 2010 370z
Scruffydog's Journal
scruffydog is offline   Reply With Quote
Old 06-08-2013, 01:39 PM   #3 (permalink)
Base Member

Merlinshawn's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 44
Drives: 11 370Z Sport 5spd
Rep Power: 14
Merlinshawn is on a distinguished road
Default

Do you have the Kiwi 1 or 2?

I have been playing around with some of the track apps and I have the OBDII PLX Kiwi 2 Wifi. I like Harrys Lap Timer, except that it relies on the GPS refresh rate to recorded data.

I have an iPhone 4s and the internal GPS refreshes its self once a second or 1 Hz, my OBDII Kiwi 2 refreshes 6 times a second or 6 Hz. Since Harrys Lap Timer is heavily GPS based its only recording data once a second and dropping a lot from the OBDII. It even drops a lot of the accelerometer data, it refreshes at 31 Hz.

The only way to get Harrys to record data quicker is to get an external Bluetooth GPS with a higher refresh rate and then it will look better because its not skipping all the info in between those seconds.

I have been the apps for autocross, a lot can happen in one second. I have been using DashCommand on my phone, it is more expensive. It records based off the OBDII refresh rate, but does not have the lap features Harrys has. I haven't tried the Rev app just because I saw it hasn't been updated in a long time.
__________________
2011 370Z Base Sport
Fast Intentions High Flow Cats, Fast Intentions Cat Back Exhaust, Stillen Gen 3 Intake,Z1 Stainless Steel Brake Lines
Merlinshawn is offline   Reply With Quote
Old 06-08-2013, 03:43 PM   #4 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 16
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by Merlinshawn View Post
Do you have the Kiwi 1 or 2?

I have been playing around with some of the track apps and I have the OBDII PLX Kiwi 2 Wifi. I like Harrys Lap Timer, except that it relies on the GPS refresh rate to recorded data.

I have an iPhone 4s and the internal GPS refreshes its self once a second or 1 Hz, my OBDII Kiwi 2 refreshes 6 times a second or 6 Hz. Since Harrys Lap Timer is heavily GPS based its only recording data once a second and dropping a lot from the OBDII. It even drops a lot of the accelerometer data, it refreshes at 31 Hz.

The only way to get Harrys to record data quicker is to get an external Bluetooth GPS with a higher refresh rate and then it will look better because its not skipping all the info in between those seconds.

I have been the apps for autocross, a lot can happen in one second. I have been using DashCommand on my phone, it is more expensive. It records based off the OBDII refresh rate, but does not have the lap features Harrys has. I haven't tried the Rev app just because I saw it hasn't been updated in a long time.
Race Render makes Track Addict HD for the Iphone ... I use it but I am not sure if the refresh is better, same or worse than Harry's.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 06-08-2013, 09:51 PM   #5 (permalink)
Base Member

Merlinshawn's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 44
Drives: 11 370Z Sport 5spd
Rep Power: 14
Merlinshawn is on a distinguished road
Default

To figure how much its recording just export your data into a csv file and look at the time stamp and how many lines it records. I saw there was a free version of Track Addict, I might try to play with it tomorrow.

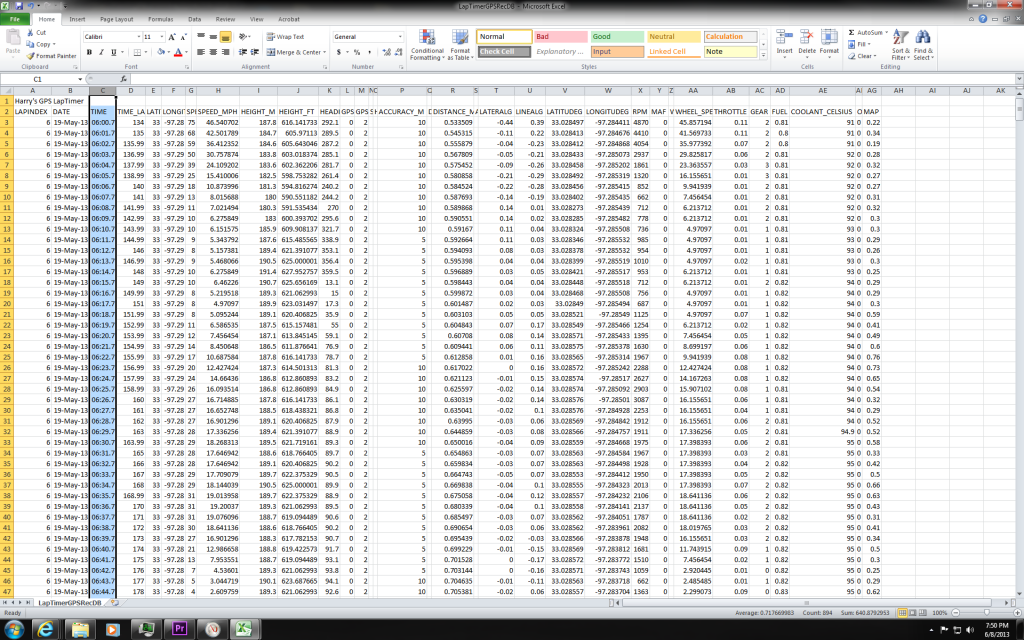

This is an example of Harrys lap timer with the Kiwi 2, it just does a line every second (bigger size http://i146.photobucket.com/albums/r...r.png~original )

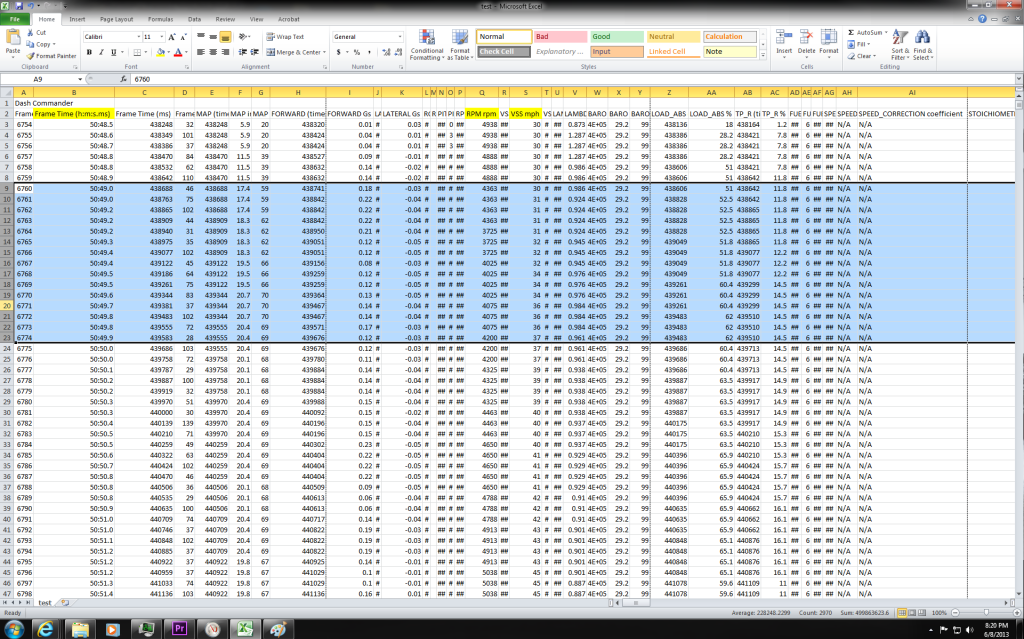

Here is Dash Command with the Kiwi 2, I havnt figure out what every line is like the ABS stuff. I highlighted just 1 second out of the file. ( bigger size http://i146.photobucket.com/albums/r...r.png~original )

__________________
2011 370Z Base Sport
Fast Intentions High Flow Cats, Fast Intentions Cat Back Exhaust, Stillen Gen 3 Intake,Z1 Stainless Steel Brake Lines
Merlinshawn is offline   Reply With Quote
Old 06-09-2013, 01:24 AM   #6 (permalink)
A True Z Fanatic

cossie1600's Avatar

Join Date: Jun 2009
Location: californee way
Posts: 5,380
Drives: 370, Leaf
Rep Power: 30
cossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond reputecossie1600 has a reputation beyond repute
Default

You need an external GPS for the phone, 1hz is only good enough to do lap times
cossie1600 is offline   Reply With Quote
Old 06-09-2013, 10:20 AM   #7 (permalink)
A True Z Fanatic

scruffydog's Avatar

Join Date: Jan 2009
Location: Nor Cal
Posts: 1,113
Drives: with his eyes close
Rep Power: 717
scruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond reputescruffydog has a reputation beyond repute
Default

Quote:
Originally Posted by Merlinshawn View Post
Do you have the Kiwi 1 or 2?

I have been playing around with some of the track apps and I have the OBDII PLX Kiwi 2 Wifi. I like Harrys Lap Timer, except that it relies on the GPS refresh rate to recorded data.

I have an iPhone 4s and the internal GPS refreshes its self once a second or 1 Hz, my OBDII Kiwi 2 refreshes 6 times a second or 6 Hz. Since Harrys Lap Timer is heavily GPS based its only recording data once a second and dropping a lot from the OBDII. It even drops a lot of the accelerometer data, it refreshes at 31 Hz.

The only way to get Harrys to record data quicker is to get an external Bluetooth GPS with a higher refresh rate and then it will look better because its not skipping all the info in between those seconds.

I have been the apps for autocross, a lot can happen in one second. I have been using DashCommand on my phone, it is more expensive. It records based off the OBDII refresh rate, but does not have the lap features Harrys has. I haven't tried the Rev app just because I saw it hasn't been updated in a long time.
I have the Kiwi Plex 2 Wifi but the refresh rate is kind of slow. I recently bought a bluetooth external Dual XGPS 150 too, but it doesn't fix the issue. It seems like during the real time recording, I can see the throttle blip after changing the sensor delay for kiwi Plex obd to "0 sec" the rpm gauge relatively pairs up with what I'm doing too. But that's real time when I'm driving when recording.

But I don't believe when it's time to overlay its using as much data points to overlay onto the video. Because I cannot see the throttle blip in the overplayed video. Which only makes me feel like the rpm isn't too accurate. Has anyone been able to successfully see a throttle blip or get Harry's lap timer to capture and pair up anything in fast response in there video?
__________________
Magnetic Black 2010 370z
Scruffydog's Journal

Last edited by scruffydog; 06-09-2013 at 10:22 AM.
scruffydog is offline   Reply With Quote
Old 06-17-2013, 06:49 PM   #8 (permalink)
A True Z Fanatic

martin82's Avatar

Join Date: Nov 2011
Location: los angeles
Posts: 2,636
Drives: 12 Nissan 370Z MB M6
Rep Power: 20
martin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud ofmartin82 has much to be proud of
Send a message via AIM to martin82
Default

Qstarz time! LOL......... I'll show you my data later!
