Old 02-07-2009, 03:10 PM   #16 (permalink)
dad
Grand Prix of Endurance

dad's Avatar

Join Date: Nov 2008
Location: Tennessee
Posts: 3,476
Drives: Mulsanne Straight
Rep Power: 26
dad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond repute
Default

This photo it looks like it goes into that black thing.

Do you have holes in the body it self?
Attached Images
File Type: jpg z_acc_lg_chin_spoiler.jpg (26.6 KB, 12 views)
__________________

We can do without any article of luxury we have never had; but once obtained, it is not in human nature to surrender it voluntary.
dad is offline   Reply With Quote
Old 02-07-2009, 03:12 PM   #17 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

Quote:
Originally Posted by dad View Post
This photo it looks like it goes into that black thing.

Do you have holes in the body it self?
There are dimples where the screws go in, but I don't see a way to reach behind there so that the screws can tap into the white cylinders.
Pushing_Tin is offline   Reply With Quote
Old 02-07-2009, 03:21 PM   #18 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 33
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Default

Quote:
Originally Posted by Pushing_Tin View Post
I have no idea, and don't want to screw them up, pun intended!

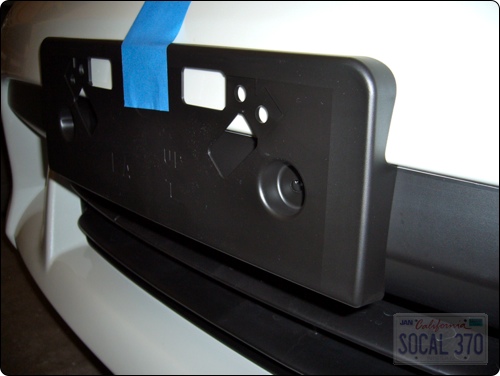

The black clips secure the license plate itself (I was incorrect about not needing them). The white anchor is similar to a drywall anchor as you push it through the dimple holes you drilled out (with a 3/8" bit) then when you run the screw down it pushes out the middle flange of the white anchor, engages into the threaded part of what now becomes a "T" and cinches down on the back of the front bumper. I added more photographs to the album for further reference, but two are shown below.




Last edited by SoCal 370Z; 02-07-2009 at 04:10 PM. Reason: Added pics
SoCal 370Z is offline   Reply With Quote
Old 02-07-2009, 03:27 PM   #19 (permalink)
dad
Grand Prix of Endurance

dad's Avatar

Join Date: Nov 2008
Location: Tennessee
Posts: 3,476
Drives: Mulsanne Straight
Rep Power: 26
dad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond repute
Default

Quote:
Originally Posted by dad View Post
Do those white things expand, after the screw is inserted?

Do you insert the white things first, "from the front of the car", then insert the screws?
Quote:
Originally Posted by SoCal 370Z View Post
The owner's manual is incorrect (I am finding more mistakes throughout the manual) with step 6, p.9-13. You do not need the black clips, and I bet that is what causing your plate holder from being flush. The white anchor is similar to a drywall anchor as you push it through the dimple holes you drilled out (with a 10mm bit) then when you run the screw down it pushes out the middle flange of the white anchor, engages into the threaded part of what now becomes a "T" and cinches down on the back of the front bumper.
That's what I was getting at.

Don't over tighten---it will strip!
__________________

We can do without any article of luxury we have never had; but once obtained, it is not in human nature to surrender it voluntary.
dad is offline   Reply With Quote
Old 02-07-2009, 04:10 PM   #20 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

Hmm, I'm not even sure if I have a 3/8 bit, I'll have to go check.

Thanks so much for all of the info!!
Pushing_Tin is offline   Reply With Quote
Old 02-07-2009, 04:13 PM   #21 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 33
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Smile

Quote:
Originally Posted by Pushing_Tin View Post
Hmm, I'm not even sure if I have a 3/8 bit, I'll have to go check.

Thanks so much for all of the info!!
You're welcome! A 23/64" bit is snugger, but will work just as well.

Quote:
Originally Posted by dad View Post
Don't over tighten---it will strip!
That's definitely sound advice with this anchor material.

Last edited by SoCal 370Z; 02-07-2009 at 04:23 PM.
SoCal 370Z is offline   Reply With Quote
Old 02-07-2009, 05:23 PM   #22 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

Okay well I just failed miserably. I found the correct size bit, drilled it out, put the clips on the plastic piece that the actual plate attaches to, and inserted the white plastic anchors. But they would not take the screws, they just spun freely. So I tried to pull the white plastic anchors out with needle nose pliers and they both broke into several pieces with the "nut" broken off inside the bumper with not way to get it out.

I guess this very difficult DIY is too much for me, so I'll just take it to the dealer and have them install it properly when I get my first oil change.

Thanks again for the help.
Pushing_Tin is offline   Reply With Quote
Old 02-08-2009, 08:56 PM   #23 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 33
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Unhappy Sorry to hear that...

Pushing Tin,

I am sorry to hear matters did not transpire as they should have. Was the drill bit you used sharp as a dull bit typically oblongs the hole? No matter, as we have no intention of using our front license plate, and if you want our white anchors I will send them to you—free from charge, whereby we can get your project finished with Nissan parts. Let me know in a private PM (this offer only holds for Pushing Tin, I ask that others do not PM me about the rest of the license plate holder parts as they will be tucked away should we sell the vehicle). I will also, ever so slightly, take off just enough material forming two sides so that you can hold it with an adjustable wrench to get matters started and cinch the back of the toggle where it needs to be.
SoCal 370Z is offline   Reply With Quote
Old 02-08-2009, 09:18 PM   #24 (permalink)
dad
Grand Prix of Endurance

dad's Avatar

Join Date: Nov 2008
Location: Tennessee
Posts: 3,476
Drives: Mulsanne Straight
Rep Power: 26
dad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond repute
Default

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
. License plate bracket
. J-nut 6 2
. Screw 6 2
. Screw grommet 6 2
1. Park the vehicle on flat, level ground. Locate
the two dents*A on the front bumper.
Carefully drill two pilot holes using a 0.39 in
(10 mm) drill bit. (Be sure that the drill
only goes through the bumper fascia.)
2. Insert grommets into the hole on the bumper
fascia.
3. Insert a flat-blade screwdriver into the
grommet hole to add 90 turn onto the part
*B .
4. Make sure the side end surface of the
license plate bracket is aligned with the
bumper*C .
5. Insert a J-nut into the license plate bracket
before placing the license plate bracket on
the fascia


I believe no.3 is why the white things turned , when the screw was inserted!


I can't get the picture to copy from the manual!!!!
__________________

We can do without any article of luxury we have never had; but once obtained, it is not in human nature to surrender it voluntary.
dad is offline   Reply With Quote
Old 02-08-2009, 09:28 PM   #25 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 33
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Default

Quote:
Originally Posted by dad View Post
3. Insert a flat-blade screwdriver into the
grommet hole to add 90 turn onto the part
*B.
A punch or scratch awl would work better, but I have tried the supplied screw itself and all you need do is push it into the hole for it to "T" the anchor.
SoCal 370Z is offline   Reply With Quote
Old 02-08-2009, 09:34 PM   #26 (permalink)
dad
Grand Prix of Endurance

dad's Avatar

Join Date: Nov 2008
Location: Tennessee
Posts: 3,476
Drives: Mulsanne Straight
Rep Power: 26
dad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond reputedad has a reputation beyond repute
Default

Quote:
Originally Posted by SoCal 370Z View Post
A punch or scratch awl would work better, but I have tried the supplied screw itself and all you need do is push it into the hole for it to "T" the anchor.
OK.
Real nice offer you made for him.rep point
__________________

We can do without any article of luxury we have never had; but once obtained, it is not in human nature to surrender it voluntary.
dad is offline   Reply With Quote
Old 02-08-2009, 10:06 PM   #27 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

Quote:
Originally Posted by SoCal 370Z View Post
Pushing Tin,

I am sorry to hear matters did not transpire as they should have. Was the drill bit you used sharp as a dull bit typically oblongs the hole? No matter, as we have no intention of using our front license plate, and if you want our white anchors I will send them to you—free from charge, whereby we can get your project finished with Nissan parts. Let me know in a private PM (this offer only holds for Pushing Tin, I ask that others do not PM me about the rest of the license plate holder parts as they will be tucked away should we sell the vehicle). I will also, ever so slightly, take off just enough material forming two sides so that you can hold it with an adjustable wrench to get matters started and cinch the back of the toggle where it needs to be.
Wow SoCal, thanks a lot for the offer! But right now I think I will save you the cost of boxing and shipping them to me and get my car in for an oil change next week. If for some reason they can't install it or want a lot of money I may take you up on the offer.

Again thanks for your time and help, and dad too!
Pushing_Tin is offline   Reply With Quote
Old 02-08-2009, 10:07 PM   #28 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

And it would have been nice if they had included a one page instruction sheet with the plate, especially since it cost $75!
Pushing_Tin is offline   Reply With Quote
Old 02-08-2009, 10:13 PM   #29 (permalink)
A True Z Fanatic

BanningZ's Avatar

Join Date: Nov 2008
Location: nowhere
Posts: 5,478
Drives: 06' Nismo Frontier
Rep Power: 28
BanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant futureBanningZ has a brilliant future
Default

Quote:
Originally Posted by Pushing_Tin View Post
I found the correct size bit, drilled it out,


I seriously winced when I read this and saw the picture of the bit.

I'm sorry Pushing_Tin, That sucks
__________________
Become a Premium Member: Click HERE

MB 06' Nismo VQ40DE
BanningZ is offline   Reply With Quote
Old 02-08-2009, 10:28 PM   #30 (permalink)
A True Z Fanatic

Pushing_Tin's Avatar

Join Date: Nov 2008
Location: Eugene, OR
Posts: 2,875
Drives: E63 AMG
Rep Power: 228
Pushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond reputePushing_Tin has a reputation beyond repute
Default

Quote:
Originally Posted by BanningZ View Post


I seriously winced when I read this and saw the picture of the bit.

I'm sorry Pushing_Tin, That sucks
I don't think there is any serious damage, I just don't know how to get the nuts from those white anchors out of the bumper without removing the entire thing.
