Finally got my Stillen SC done and tuned.

Neo187H · 12-21-2011, 08:02 PM

I bought the kit used way back in September and have had quite the time getting it running 100% but it's finally there so here is my quick build thread to show another finished Stillen build.

Parts:
Motordyne ART pipes
Ark type 2 cat back exhaust
Upgraded GTM MAFs
928 motorsports impeller
Stillen 9 PSI pulley
Injector Dynamics 725cc injectors.
DeatschWerks 300LPH fuel pump

With this combination of parts the way the Stillen SC is set up this was maxing out the mass airflow sensors at right about 7100RPM and the GTM sensors solved this issue (Big thanks to GTM for dealing with my incessant calling asking where they were). And on to the good stuff

The tuning was done at Synapse Turbo, a local import shop that has a very good reputation though no experience with Nissans or UpRev.

ANMVQ · 12-27-2011, 09:43 AM

Good numbers man, Having my Stillen SC installed in the next week.

Mr.Squeeze · 12-27-2011, 04:37 PM

Conragts on the set up what kind of dyno is this seems on the low side.Also how many pounds of boost are you seeing. I see something in the screen on the top that says
4WD.

Neo187H · 12-27-2011, 05:03 PM

Quote:

Originally Posted by Mr.Squeeze

Conragts on the set up what kind of dyno is this seems on the low side.Also how many pounds of boost are you seeing. I see something in the screen on the top that says
4WD.

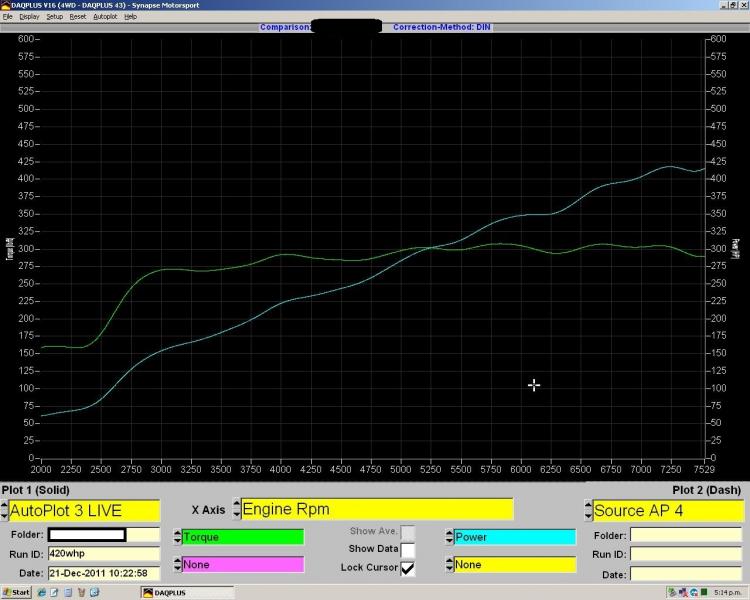

It's a dynapack hub dyno which does seem a bit low but from everything I have read this shop has an extremly low reading dyno. Not that I have any clue how accurate that hype is. I'm hoping to get the car dynoed again at a different shop next week just so I can see for myself.

The car is hitting just about 10PSI at redline.

ANMVQ · 12-27-2011, 05:06 PM

Quote:

Originally Posted by Mr.Squeeze

Conragts on the set up what kind of dyno is this seems on the low side.Also how many pounds of boost are you seeing. I see something in the screen on the top that says
4WD.

Did not look that low to me. hope I make that on 8 PSI.
