Forced Induction Finished Builds

V1H · 01-19-2020, 06:28 AM

Quote:

Originally Posted by Martijn_b

Rene, can it be that you are running a lot of timing? I made a little over 500bhp on 6psi.

You should be easily able to push 10-11 psi and keep a safe margin.

Sent from my SM-G973F using Tapatalk

Maybe, no idea. I make about the same. About 500 bhp at 6psi but that was about the highest before knock would occur at high rpm. Jez at Horsham Development tunes safe and knows a bit about turbo 350Z’s too. My 370Z AAM TT was the first though.
I do realise that our bhp and US whp are about the same. Power is good. I’m just puzzled by the high boost

Sent from my iPhone using Tapatalk

jwick · 01-19-2020, 10:56 AM

Quote:

Originally Posted by V1H

Maybe, no idea. I make about the same. About 500 bhp at 6psi but that was about the highest before knock would occur at high rpm. Jez at Horsham Development tunes safe and knows a bit about turbo 350Z’s too. My 370Z AAM TT was the first though.
I do realise that our bhp and US whp are about the same. Power is good. I’m just puzzled by the high boost

Sent from my iPhone using Tapatalk

He probably pulled a bunch of timing. I’m running 11.5-12lbs with the output most get from 9ish. We had to do that to limit the torque it was making. I wanted to keep it under 450wtq and it was a torque making monster.

First pulls were 500/480. We finally got it dialed ‘down’ to 510/440.

V1H · 01-19-2020, 11:01 AM

Quote:

Originally Posted by jwick

He probably pulled a bunch of timing. I’m running 11.5-12lbs with the output most get from 9ish. We had to do that to limit the torque it was making. I wanted to keep it under 450wtq and it was a torque making monster.

First pulls were 500/480. We finally got it dialed ‘down’ to 510/440.

Hmm, i already make 435 tq with my tune at around 3700rpm. But at this point boost is up to 8psi instead of mentioned 6psi (at peak power). Hence, i’d acrually not want any more boost anyway, right?

Sent from my iPhone using Tapatalk

jwick · 01-19-2020, 11:50 AM

Quote:

Originally Posted by V1H

Hmm, i already make 435 tq with my tune at around 3700rpm. But at this point boost is up to 8psi instead of mentioned 6psi (at peak power). Hence, i’d acrually not want any more boost anyway, right?

Sent from my iPhone using Tapatalk

I’m not familiar with tour setup, so I can’t say. I have a BP single kit, which a single makes torque for days. I also have the P6266 turbo and not the new oil less turbo. A TT is a little easier to dial the torque in. Key is to find a good tuner and tell him exactly what you are looking for in your tune. If you trust him, which you should if he is tuning a $15-20 turbo build, then let him work it out and don’t worry about how much boost you are running.

husam2012 · 01-19-2020, 01:54 PM

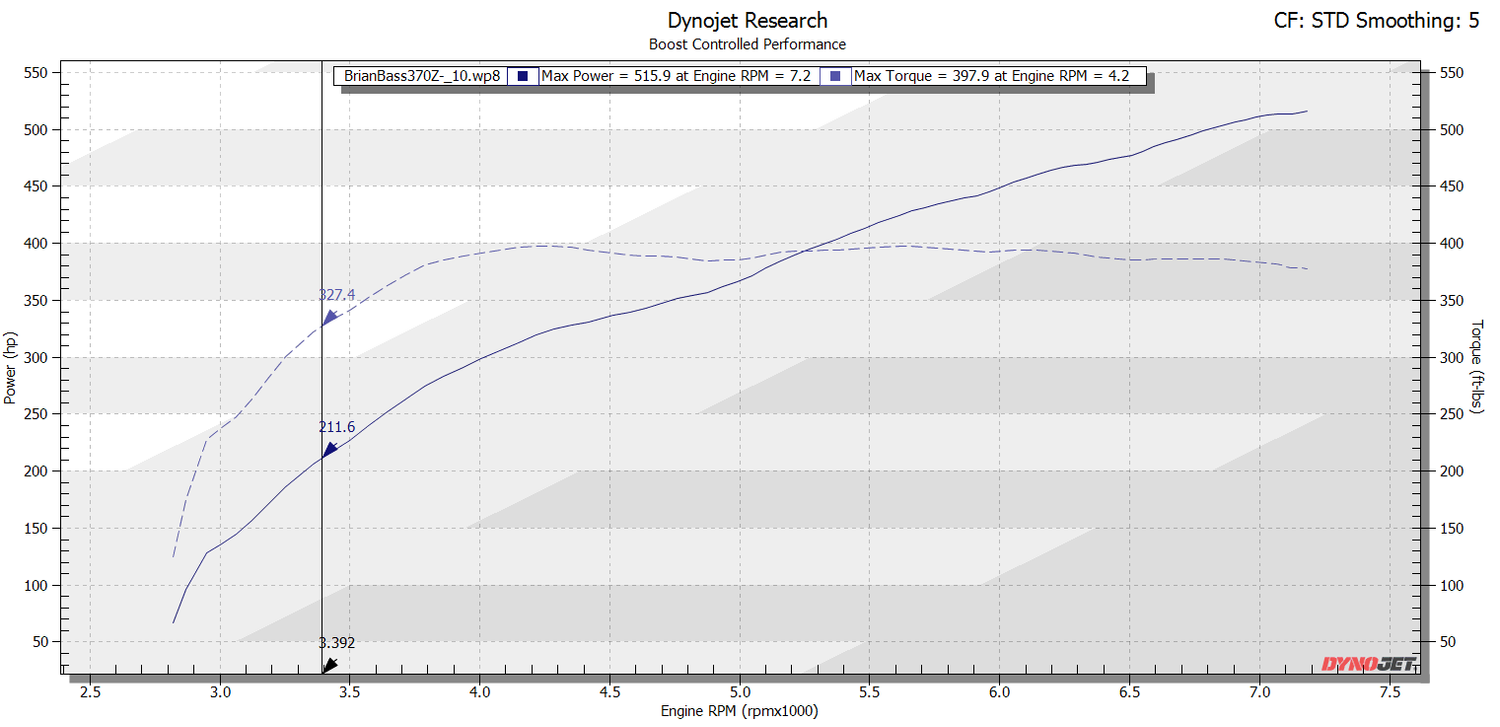

I finished this FI build with the old GTM kit, here are the results! Tuned by me, on 93 octane. Ran out of fuel uptop so unfortunately had to limit rpm.

This is with a returnless fuel system and 700~ cc injectors.

https://btwtuning.com/blogs/2019/12/...o-charged-370z

Spooler · 01-19-2020, 03:55 PM

Quote:

Originally Posted by jwick

He probably pulled a bunch of timing. I’m running 11.5-12lbs with the output most get from 9ish. We had to do that to limit the torque it was making. I wanted to keep it under 450wtq and it was a torque making monster.

First pulls were 500/480. We finally got it dialed ‘down’ to 510/440.

Yeap, more timing creates more cylinder pressure and more TQ.

solidus · 01-19-2020, 04:00 PM

Quote:

Originally Posted by Spooler

Yeap, more timing creates more cylinder pressure and more TQ.

And heat, can't forget heat. That's when the machine starts to get weak and everything starts to fall backwards like a runaway nuke meltdown.

Spooler · 01-19-2020, 05:25 PM

Quote:

Originally Posted by solidus

And heat, can't forget heat. That's when the machine starts to get weak and everything starts to fall backwards like a runaway nuke meltdown.

It is where you place the heat. Less timing, the EGT's are going through the roof and the heat in the turbo is more. More timing, the heat is in the cylinder with more cylinder pressure. It is a trade off and a fine line to walk.

Girald · 05-15-2020, 11:49 PM

Year - 2015 Sport Tech
Kit - AAM Twin turbo St1 / 3" AAM pipes
Current Power - Unkonwn currently
PSI - Variable psi peaking around 11psi
Fuel - e85 on flex
ODO on install - 35k
ODO this post - 43k

MODS -

Tuning Software:
Ecutek Racerom W ECU Connect dongle / SpecialtyZ Remote Tuned

FlexFuel/ingnition:
Injectors idx 1050 ;; ID1050x Injectors - Injector Dynamics
Plugs HKS Step 9;; https://www.hks-power.co.jp/en/produ...ies/index.html
CJMotorsports fuel return kit;; https://cj-motorsports.com/products/...el-system-370z
Walbro 450 fuel pump;; https://walbrofuelpumps.com/450lph-w...f90000267.html
Aeromotive pump speed controller;; https://aeromotiveinc.com/product/bi...ed-controller/
CB2 Canbus RPM signal;;https://sirhclabs.com/product/can-bu...rpm-interface/
fuel pump relay kit / electrical bulkhead fittings

Cooling:
FI Oil cooler kit(side mounted wit Spal pusher fan and thermostat) https://www.fastintentions.com/produ...roducts_id/144
Power Steering - Setrab series 1 16 row (side mounted (window wiper fluid relocate) and spal pusher fan with thermostat
Fender Liners - kia sportage vented liners diy mod for coolers
intercooler painted black with thermal dispersant at the powedercoater

Exahust ceramic coated tip to tip, dei titanium wrapped manifold to the mid pipes;; https://www.designengineering.com/ti...cking-tie-kit/
Fuel lines, clutch lines, exposed harness and other wrapped with dei fiber sleeve;; https://www.designengineering.com/fire-sleeve-tape-kit/
Hood bottom, bay charge pipes, fuel rails, and other heat soak spots taped with dei reflectagold;; https://www.designengineering.com/re...flective-roll/

PCV:
plumbed and returned to the intakev pipe fittings / plenum capped off
CJM flow through fitting ( PCV valve delete);; https://cj-motorsports.com/products/...apter-m16-x-10
Mishimoto oil catch cans per bank;; https://www.mishimoto.com/compact-ba...2-port-bc.html
CCV: vented...

Fluids:
Brakes - Motul RBF 660
Clutch - Motul RBF 660;; https://www.motul.com/ca/en-US/produ...0-factory-line
Power Steering - Redline D6 ATF;; https://www.redlineoil.com/d6-atf
Oil - Schaeffer 5W/50 Synthetic race oil;; https://www.schaefferoil.com/9000-racing-oil.html
Trans - MT-85;; https://www.redlineoil.com/mt-85-75w85-gl-4-gear-oil
Differential - Redline 75/90;; https://www.redlineoil.com/75w90-ns-gl-5-gear-oil
Windshield wiper fluid - filled with tears from people i raced

Gauges:
Defi BF 60mm Oil Pressue, Oil Temp, Water Temp - Triple OEM replacement
Innovate ECB-1 Pillar Pod Mounted
Chippernut shift light;; https://www.youtube.com/watch?v=iXFBzPQ1jII
Center console mod - triple switch: pump controller bypass, vdc kill, brake duct fans

Body:
Fly 1 AMS-GT hood with aerocatch pins (modded underside for more heat dissipation)

Brakes / wheels/ suspension
Z1 2-piece slotted rotor kit
OE suspension except SPL camber links

Race set-
OE 2015 Sport Rays
Federal RS-rr tires ( rs-pros in the future)
Carbotech Xp10/Xp8s

Street Set-
OE 2015 Nismo Rays
Whatever Y rated sticks and isnt $$$
Stoptech street pads or OE pads

Ordered or soon to install:
RS-1 fenders - need a paint job, and they go on....
Braniac 10 tablet mod Ordered!;; https://workshoptwelve.com/
Z1 race fromt upper control arms ( on their way)
Swift springs - wating on the rest...( till the OE shocks struts go boom)
SPC eccentric bolts - waiting... (lets see if they hold - if not, spl buckets with lockouts in the future)

Wishlist and to-do:
I looking to DIY an ice water intercooler spray utilizing another set of windshield wiper jets and second reservoir in the hatch.. going to test and see what happens

Looking to get some ABS sheets and make a semi-full body undertray based off the gtr underbody with naca cooling cutouts...

Dif cooler and upgraded dif cover needs to happen at some point... may mount the cooler behind the license plate.

Transcooler also... may haedline it too the dif junction and run a second cooler behind the license plate.

Engine build is a wishlist item... after the stock block starts to get tired.

BC-DS coils after the OE suspension on swifts has had enough

And whatever elase comes to mind

Links to some of my videos:
WARNING - i ramble in some videos, but the info in it is good. The gauge install videos were my first ever youtubes

Gauge install -
https://youtu.be/niPCVKMeMng
https://youtu.be/S21kQuKXjl0
https://youtu.be/mfvpWL1yBmQ
https://youtu.be/7gvbKuXvpuQ
https://youtu.be/vyQ-28Lsl58
https://youtu.be/FUKDwphHklQ

Shift Light
https://youtu.be/iXFBzPQ1jII

Oil Cooler side mounting
https://youtu.be/sJ2DT4QjoB8

Hooking up Flex fuel/Boost control wiring for Ecutek
https://youtu.be/g8kmasenp8w

When I pulled the motor to fix bad install from shop
https://youtu.be/f6uxB4Jo3BQ
https://youtu.be/Y0YyS2YPyKA
https://youtu.be/-B6EZrhtpYQ

Netguru3278 · 11-10-2020, 12:53 AM

2020 370z 6 speed Deep Blue Pearl completely stock except for Boosted Turbo Performance kit, CJM Twin Pump Hanger Assembly with single 450 walbro with 340 installed but not hooked up electrically also CJM fuel Return system with injector dynamics 1300cc Joe@Zspeed hooked me up with stage 3 clutch and light weight mild steal Flywheel Fast Intentions Exhaust from Turbo back Tuned @ Dynosty by Hal car made 565@11psi and I want to say 477 on Torque

Cars_go_vroom · 08-19-2021, 12:10 AM

Anyone in here over the 1k whp mark?

Spooler · 08-19-2021, 09:03 AM

Quote:

Originally Posted by Cars_go_vroom

Anyone in here over the 1k whp mark?

No, very few have ever made it (4) and only one is still running.

Cars_go_vroom · 08-19-2021, 01:30 PM

Quote:

Originally Posted by Spooler

No, very few have ever made it (2) and only one is still running.

Do you know who the one person is that's still alive and running?

Spooler · 08-19-2021, 01:42 PM

Quote:

Originally Posted by Cars_go_vroom

Do you know who the one person is that's still alive and running?

SOHO's shop car Nismobae. That's it at the moment.

JARblue · 08-19-2021, 02:16 PM

Quote:

Originally Posted by Spooler

SOHO's shop car Nismobae. That's it at the moment.

And what's your excuse?
