Well I finally decided to do TTs on my Z. I was reluctant to do it because I do put it through a lot at the track and heat was

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Engine & Drivetrain > Forced Induction


Like Tree74Likes

Reply

LinkBack Thread Tools Display Modes
Old 04-30-2020, 07:29 AM   #1 (permalink)
A True Z Fanatic

2011 Nismo#91's Avatar

Join Date: Mar 2011
Location: NJ
Posts: 2,402
Drives: slowly
Rep Power: 40569
2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute
Cool Another GTR TT Z

Well I finally decided to do TTs on my Z. I was reluctant to do it because I do put it through a lot at the track and heat was already an issue. But not having anywhere to go for a few months and having a lot of other maintenance and fixes to do along with a pretty good deal; I figured it was time for more power since I pretty much did everything else performance wise except aero. Which I will probably need next to deal with the extra power. Anyway here are some pics of the current state at Real Auto Dynamics in Ocean Side NY.







fryzia23, JARblue, Rusty and 16 others like this.
2011 Nismo#91 is offline   Reply With Quote
Old 04-30-2020, 10:50 AM   #2 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86951
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Subbed. Excited to see more of these GTR/TT and upcoming BP/TT Builds coming out! Twin Turbos unite!
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-30-2020, 11:24 AM   #3 (permalink)
Track Member

TBatt's Avatar

Join Date: Apr 2013
Location: Huntsville, AL
Posts: 832
Drives: 2019 GT-R
Rep Power: 20168
TBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond reputeTBatt has a reputation beyond repute
Default

Congrats! Keep us posted on the rest of the project, please.

I would like to know how the power delivery works out on the track. SC is very predictable but a turbo car can be a handful when the boost builds unexpectedly.
__________________
RJM pedal, Hotchkis Sway Bars, FI TDX, FOG Light, Z1 Slotted Drilled rotors, Stillen SC, Quaife ATB, Z1 Oil cooler, AEM Gauge Set, Galeforce gauge mount, Avant Garde M590 Hypersilver w/RE-11, TopgunZ A2A kit., ECUtek tuned by Seb: ROLL TIDE!
TBatt is offline   Reply With Quote
Old 04-30-2020, 11:38 AM   #4 (permalink)
A True Z Fanatic

Join Date: Jun 2014
Location: Ga
Posts: 13,834
Drives: 2013 Nismo 370z
Rep Power: 2684392
Spooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond repute
Default

Quote:
Originally Posted by TBatt View Post
Congrats! Keep us posted on the rest of the project, please.

I would like to know how the power delivery works out on the track. SC is very predictable but a turbo car can be a handful when the boost builds unexpectedly.
Small turbo's that spool too quick can be a pain in the butt. Get a little bit bigger turbo and you get more control with your right foot. My car wasn't too bad.
Spooler is online now   Reply With Quote
Old 04-30-2020, 12:30 PM   #5 (permalink)
A True Z Fanatic

2011 Nismo#91's Avatar

Join Date: Mar 2011
Location: NJ
Posts: 2,402
Drives: slowly
Rep Power: 40569
2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute
Default

Quote:
Originally Posted by TBatt View Post
Congrats! Keep us posted on the rest of the project, please.

I would like to know how the power delivery works out on the track. SC is very predictable but a turbo car can be a handful when the boost builds unexpectedly.
I'm guessing it should be similar to a GTR minus the AWD. But I'm just going to have to relearn how to come out of turns. And of course heat will be an issue again, though I hope relocating the 34row Oil and 19row PS coolers to the stillen side ducts will help.
Rusty and Elmo370z like this.
2011 Nismo#91 is offline   Reply With Quote
Old 04-30-2020, 04:19 PM   #6 (permalink)
A True Z Fanatic

Join Date: Apr 2013
Location: st. petersburg
Posts: 5,709
Drives: 09 nissan 370z Sp M6
Rep Power: 295378
Elmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond repute
Default

Quote:
Originally Posted by 2011 Nismo#91 View Post
I'm guessing it should be similar to a GTR minus the AWD. But I'm just going to have to relearn how to come out of turns. And of course heat will be an issue again, though I hope relocating the 34row Oil and 19row PS coolers to the stillen side ducts will help.
It will be a learning curve. I知 upgrading to 10 -AN fitting first my
Oil cooler. If that doesn稚 help, I値l go for twin coolers
2011 Nismo#91 and Hotrodz like this.
Elmo370z is offline   Reply With Quote
Old 04-30-2020, 07:10 PM   #7 (permalink)
A True Z Fanatic

JARblue's Avatar

Join Date: Mar 2011
Location: Austin, TX
Age: 43
Posts: 36,450
Drives: 11 Z34, 98 E36 M3
Rep Power: 2684440
JARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond repute
Default

Figured it was bout time for you
2011 Nismo#91 likes this.
__________________

2011 370Z 6MT Sport Gun Metallic | ARC | CJM | Ecutek | FI | Fujimura | R2C | SPL | Stillen | TWM | Z1 | ZSpeed |
JARblue is offline   Reply With Quote
Old 05-01-2020, 12:19 AM   #8 (permalink)
Ronin Samurai - Assassin

Rusty's Avatar

Join Date: Dec 2011
Location: Fayettenam,Pennsyltucky
Age: 68
Posts: 35,218
Drives: 2011 Nismo GM 6M
Rep Power: 2684438
Rusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond repute
Talking

Quote:
Originally Posted by Elmo370z View Post
It will be a learning curve. I知 upgrading to 10 -AN fitting first my
Oil cooler. If that doesn稚 help, I値l go for twin coolers
The FI coolers uses an AN -8. Z1 uses an AN -10 fittings and hoses. Found this out when I was helping JL with his BP turbo install.
__________________

浪人 - 殺し屋
"The Difficult Anytime, The Impossible By Appointment Only"
http://www.the370z.com/members-370z-...o-journal.html
Rusty is offline   Reply With Quote
Old 05-01-2020, 04:07 PM   #9 (permalink)
A True Z Fanatic

2011 Nismo#91's Avatar

Join Date: Mar 2011
Location: NJ
Posts: 2,402
Drives: slowly
Rep Power: 40569
2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute
Default

Quote:
Originally Posted by JARblue View Post
Figured it was bout time for you
Yes, I could easily pass those 500+ hp Mustangs, Camaros, Vetts, and Dodges in the twisties but they would always blow by me in the straights. Not for long.
JARblue, Rusty, Hotrodz and 1 others like this.
2011 Nismo#91 is offline   Reply With Quote
Old 05-01-2020, 04:19 PM   #10 (permalink)
Ronin Samurai - Assassin

Rusty's Avatar

Join Date: Dec 2011
Location: Fayettenam,Pennsyltucky
Age: 68
Posts: 35,218
Drives: 2011 Nismo GM 6M
Rep Power: 2684438
Rusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond repute
Talking

Quote:
Originally Posted by 2011 Nismo#91 View Post
Yes, I could easily pass those 500+ hp Mustangs, Camaros, Vetts, and Dodges in the twisties but they would always blow by me in the straights. Not for long.
I know that feeling. I usually catch them on the brakes.

What made you go with the GTR turbo's?
2011 Nismo#91 likes this.
__________________

浪人 - 殺し屋
"The Difficult Anytime, The Impossible By Appointment Only"
http://www.the370z.com/members-370z-...o-journal.html
Rusty is offline   Reply With Quote
Old 05-01-2020, 05:28 PM   #11 (permalink)
A True Z Fanatic

Join Date: Apr 2013
Location: st. petersburg
Posts: 5,709
Drives: 09 nissan 370z Sp M6
Rep Power: 295378
Elmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond reputeElmo370z has a reputation beyond repute
Default

Quote:
Originally Posted by Rusty View Post
The FI coolers uses an AN -8. Z1 uses an AN -10 fittings and hoses. Found this out when I was helping JL with his BP turbo install.
Yup, I知 swapping them
Out for -10an
Rusty and Hotrodz like this.
Elmo370z is offline   Reply With Quote
Old 07-01-2020, 08:14 AM   #12 (permalink)
A True Z Fanatic

2011 Nismo#91's Avatar

Join Date: Mar 2011
Location: NJ
Posts: 2,402
Drives: slowly
Rep Power: 40569
2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute
Default

Its pretty much done, a few minor things left but it's up an running.

Coolant temp is a bit high in traffic. (Water, waterwetter, CFS triplepass)
Thinking maybe a manual fan switch paired with a better fan setup.

Need to replace the damage bumper.

Need to install guage pod and order/install dual band afr guage.

Install/order oil catch can.

Verify oil blow by is no longer an issue.

Replace windsheild washer bottle.

Get the ECUtek app working with my OBDIILink LX.

Cold start idle fix, revs only to 500rpm on cold start and have to give it gas to get to the normal 1200.

Oil pressure is about 10-15psi lower then before, 19psi idle and 70 at around 3k on the highway. Not really an issue, just an observation.

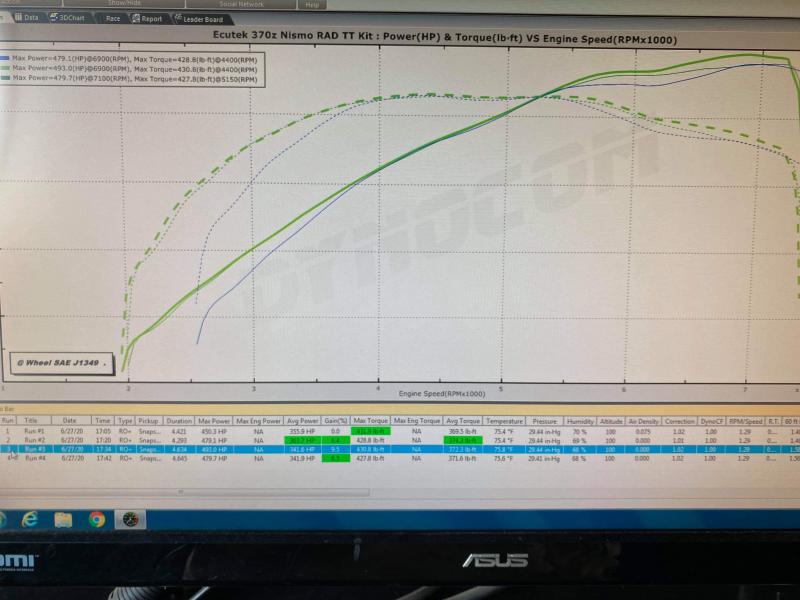

Full boost kicks in on or just before 4k so will be great on the track.



JARblue, Rusty, BC416 and 3 others like this.
2011 Nismo#91 is offline   Reply With Quote
Old 07-01-2020, 08:38 AM   #13 (permalink)
A True Z Fanatic

BOLIO 671's Avatar

Join Date: Mar 2010
Location: GUAHAN
Posts: 1,198
Drives: To & From then Back
Rep Power: 3399
BOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond reputeBOLIO 671 has a reputation beyond repute
Default

Congrats. Nice numbers...should be controllable and fun to drive with those numbers... I’m assuming this is what n 91 pump gas....

Lmk what option u did for a windshield reservoir replacement. Jayhovah has a pretty good write up for a DIY option.
2011 Nismo#91 and Jayhovah like this.
__________________
2013 Nismo Z34 / FI TT #091 / IG: @lilzilla_z34
BOLIO 671 is offline   Reply With Quote
Old 07-01-2020, 10:55 AM   #14 (permalink)
A True Z Fanatic

Join Date: Jun 2014
Location: Ga
Posts: 13,834
Drives: 2013 Nismo 370z
Rep Power: 2684392
Spooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond repute
Default

TracSpec vents will help you in stop and go traffic stay cool.
2011 Nismo#91 and JARblue like this.
Spooler is online now   Reply With Quote
Old 07-01-2020, 11:35 AM   #15 (permalink)
A True Z Fanatic

2011 Nismo#91's Avatar

Join Date: Mar 2011
Location: NJ
Posts: 2,402
Drives: slowly
Rep Power: 40569
2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute2011 Nismo#91 has a reputation beyond repute
Default

Quote:
Originally Posted by Spooler View Post
TracSpec vents will help you in stop and go traffic stay cool.
Already installed prior.
JARblue and Spooler like this.
