Topgunz full supercharger kits!!

Jayhovah · 02-08-2018, 12:12 PM

Quote:

Originally Posted by B&W_Evader

C...A...R...B... pretty please!!!

and magic beans while you're at it.

lj909 · 02-08-2018, 03:59 PM

Quote:

Originally Posted by B&W_Evader

C...A...R...B... pretty please!!!

My only question regarding this is:
Does the head unit that stillen provides have the welded on carb eo# ?

cupcakez · 02-08-2018, 04:49 PM

I really wish I had gotten my car and saw this supercharger kit at this time instead of buying the stock kit and ending up replacing a lot of the parts, xD
Darn

Edit:

@TopgunZ:

- I wish to purchase your $1750 Full A2A kit for the Stillen Supercharger. Sent a text to you about it, but realized you are probably sleeping, forgot you were in a different part of the states, lol. My bad!

But yeah, I look forward to making the actual purchase in the next 4 - 5 weeks depending on how things go for me!
SUPER STOKED ABOUT IT!

If I can get it before the built engine from IPP ships out and is delivered to my local mechanic shop, I can have the shop also install the new A2A kit after they disassemble the stillen supercharger from old blown up broken engine, and just assemble the new A2A kit -- since it comes with instructions

They can follow them better than I can xD

brucelidat · 02-09-2018, 01:15 AM

SO with recommended injectors, $6675? How long do you estimate install time is?

TopgunZ · 02-09-2018, 09:15 AM

Quote:

Originally Posted by brucelidat

SO with recommended injectors, $6675? How long do you estimate install time is?

Yes. Install depends on aptitude level. A shop could install this in 8-10 hours. A home mechanic could double that.

cupcakez · 02-09-2018, 10:14 AM

Quote:

Originally Posted by TopgunZ

Yes. Install depends on aptitude level. A shop could install this in 8-10 hours. A home mechanic could double that.

If you are not a home mechanic, or a shop mechanic! And you are going into the supercharger kit install blind with only instructions in front of you + the pieces like I did with my friend as well?

It will take way, way, wayyy longer!
It took us about 40 - 50 hours from start to finish
(About 1/2 the time included us going to the store MULTIPLE times)!!!

Otherwise, what Top said I agree with too!

B&W_Evader · 02-09-2018, 04:07 PM

Quote:

Originally Posted by lj909

My only question regarding this is:
Does the head unit that stillen provides have the welded on carb eo# ?

I don't think you'll have any luck passing it off as the Stillen CARB kit without the tube passing right behind radiator. From what I here the EO# is just a cheapo black on white sticker.

brucelidat · 02-09-2018, 05:24 PM

Quote:

Originally Posted by TopgunZ

Yes. Install depends on aptitude level. A shop could install this in 8-10 hours. A home mechanic could double that.

Seb would be my guy for this.

secondnissan · 02-09-2018, 09:52 PM

What pulleys are supplied with this kit? Stock stillen pulleys or custom? Do I have to worry about belt slip with your setup or does this kit modify the pulleys to prevent this?

TBatt · 02-10-2018, 11:13 AM

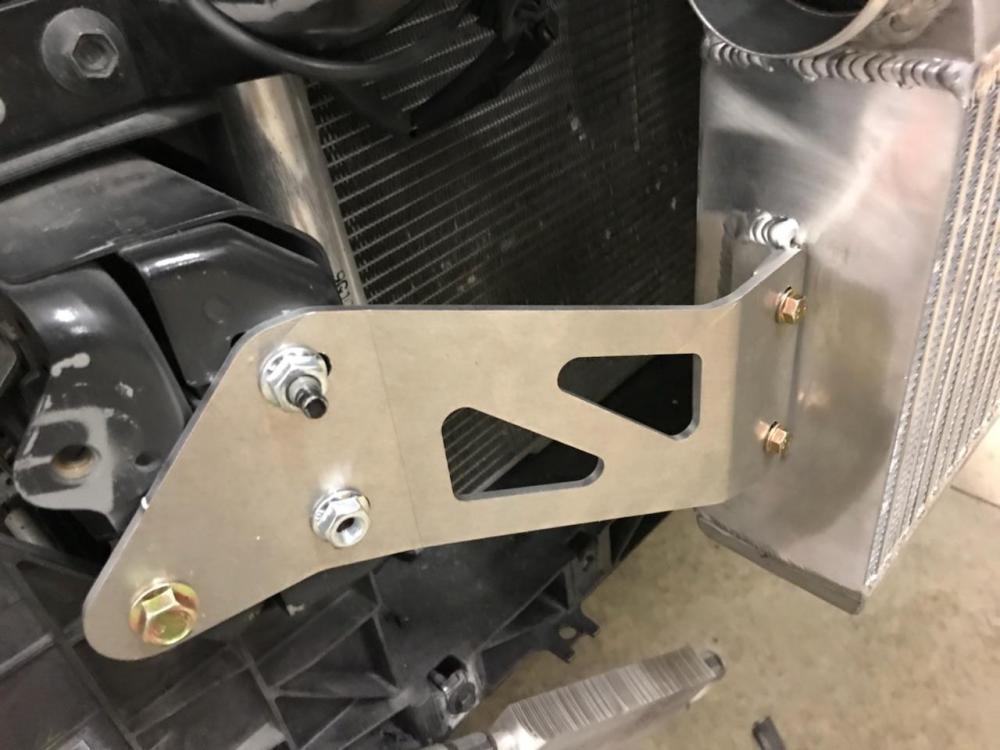

From the pictures, it looks like the jackshaft pulley has plenty of belt wrap to prevent slipping. It looks like Top thought about that problem and fixed it with the belt routing.

cupcakez · 02-10-2018, 09:40 PM

Does anyone know the size of the stock idler pulley that is on the supercharger belt side? I understand that there are 3 pulleys on the supercharger side:
1) Supercharger pulley on the jackshaft slot
2) Next to that is the Supercharger pulley on the blower itself
3) Below those two is the idler pulley that was removed from the OEM Serpentine side and placed there.

I don't remember what size the idler pulley (3rd one) on the supercharger side is?
Can anyone shed some light on that? Please and thank you!

BOLIO 671 · 02-13-2018, 11:42 AM

Quote:

Originally Posted by TBatt

From the pictures, it looks like the jackshaft pulley has plenty of belt wrap to prevent slipping. It looks like Top thought about that problem and fixed it with the belt routing.

That...Does this mean ur going to discontinue ur pulley/belt kit?

wideglideleon · 02-13-2018, 12:39 PM

As he states on first post (
I will still be supplying the A2A conversion for anyone who already bought the Stillen Kit and wants to make a ton more power.)

brucelidat · 02-13-2018, 12:52 PM

Would LTHs give me more power with this kit? I remember reading the Stillen kit supposedly lost boost and power or something with LTHs.

TopgunZ · 02-13-2018, 01:48 PM

Quote:

Originally Posted by brucelidat

Would LTHs give me more power with this kit? I remember reading the Stillen kit supposedly lost boost and power or something with LTHs.

You will lose boost, but gain power because you will free up backpressure and instead of pressurizing your manifold (which is your boost reading) you get that spent combustion out of the way for more Air! Hence, more power.

02-08-2018, 04:49 PM	#18 (permalink)
cupcakez Track Member Join Date: Oct 2017 Location: California Posts: 635 Drives: 2009-7AT-Base-Coup Rep Power: 4836	I really wish I had gotten my car and saw this supercharger kit at this time instead of buying the stock kit and ending up replacing a lot of the parts, xD Darn Edit: @TopgunZ: - I wish to purchase your $1750 Full A2A kit for the Stillen Supercharger. Sent a text to you about it, but realized you are probably sleeping, forgot you were in a different part of the states, lol. My bad! But yeah, I look forward to making the actual purchase in the next 4 - 5 weeks depending on how things go for me! SUPER STOKED ABOUT IT! If I can get it before the built engine from IPP ships out and is delivered to my local mechanic shop, I can have the shop also install the new A2A kit after they disassemble the stillen supercharger from old blown up broken engine, and just assemble the new A2A kit -- since it comes with instructions They can follow them better than I can xD Last edited by cupcakez; 02-09-2018 at 12:47 AM.

02-09-2018, 01:15 AM	#19 (permalink)
brucelidat A True Z Fanatic Join Date: Jun 2011 Location: temple city, ca Posts: 2,432 Drives: 2011 370z 7AT GM Sp Rep Power: 31	SO with recommended injectors, $6675? How long do you estimate install time is? __________________ Works Emotion CR Ultimate - FI CBE w/ 18" resonators - Ecutek - eibach sways - Quaife - FI LTH w/race cats - kw v3 - spl - Topgunz SC - 488whp 398trq

02-10-2018, 11:13 AM	#25 (permalink)
TBatt Track Member Join Date: Apr 2013 Location: Huntsville, AL Posts: 832 Drives: 2019 GT-R Rep Power: 20168	From the pictures, it looks like the jackshaft pulley has plenty of belt wrap to prevent slipping. It looks like Top thought about that problem and fixed it with the belt routing. Omnibeelzemo likes this. __________________ RJM pedal, Hotchkis Sway Bars, FI TDX, FOG Light, Z1 Slotted Drilled rotors, Stillen SC, Quaife ATB, Z1 Oil cooler, AEM Gauge Set, Galeforce gauge mount, Avant Garde M590 Hypersilver w/RE-11, TopgunZ A2A kit., ECUtek tuned by Seb: ROLL TIDE!

02-13-2018, 12:52 PM	#29 (permalink)
brucelidat A True Z Fanatic Join Date: Jun 2011 Location: temple city, ca Posts: 2,432 Drives: 2011 370z 7AT GM Sp Rep Power: 31	Would LTHs give me more power with this kit? I remember reading the Stillen kit supposedly lost boost and power or something with LTHs. __________________ Works Emotion CR Ultimate - FI CBE w/ 18" resonators - Ecutek - eibach sways - Quaife - FI LTH w/race cats - kw v3 - spl - Topgunz SC - 488whp 398trq
