Originally Posted by kukpet Hahaha little surprise 9:1 compression Carrillo H rods Wiseco pistons and other supporting parts "little" surprise you told me about a month ago.... "Little" ...

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Engine & Drivetrain > Forced Induction

Notices

Like Tree486Likes

Reply

LinkBack Thread Tools Display Modes
Old 06-07-2016, 07:13 AM   #1 (permalink)
A True Z Fanatic

1cleanZ's Avatar

Join Date: Dec 2010
Location: Twin Cities, MN
Posts: 1,132
Drives: '09 PW Nismo
Rep Power: 21
1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute1cleanZ has a reputation beyond repute
Default

Quote:
Originally Posted by kukpet View Post
Hahaha little surprise

9:1 compression
Carrillo H rods
Wiseco pistons and other supporting parts
"little" surprise you told me about a month ago....


"Little" ...
kukpet and carlitos_370z like this.
__________________
2009 PW Nismo #0021 -My Built Progress >>1cleanG to 1cleanZ<<
Team NextLevel
1cleanZ is offline   Reply With Quote
Old 07-25-2016, 06:38 PM   #2 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

Version 2.0 coming soon

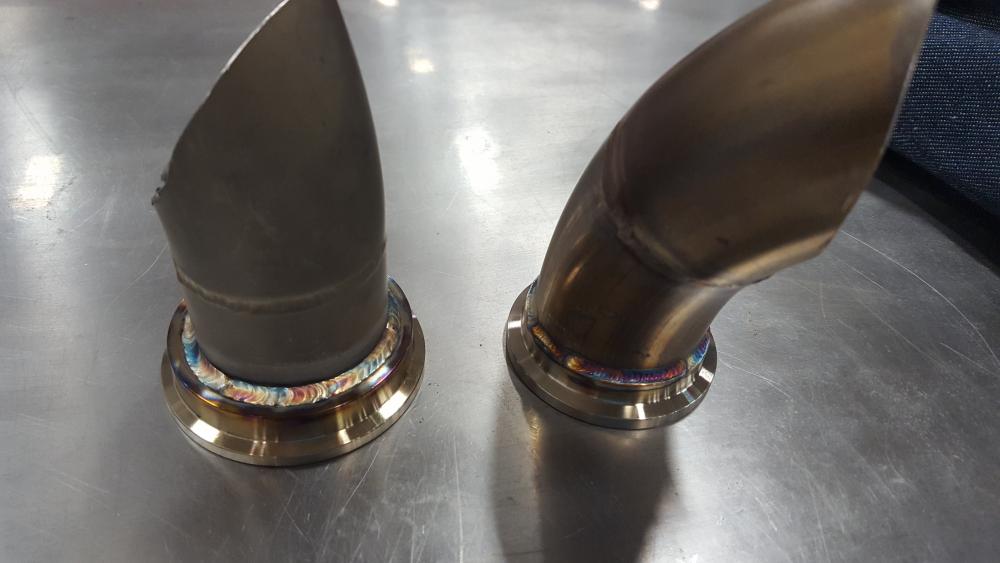

Relocated first wastegate and added 2nd 44mm Tial wastegate. I should have everything welded by tomorrow
kukpet is offline   Reply With Quote
Old 07-31-2016, 06:20 PM   #3 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

All done.....

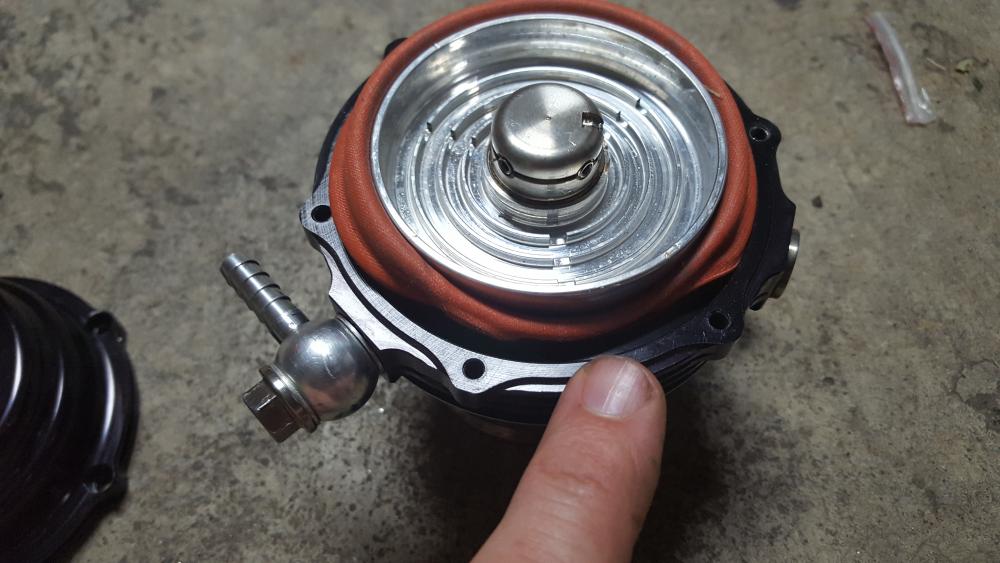

Pinched wastegate seal and small hole in seal create overboosting


New seal
carlitos_370z likes this.
kukpet is offline   Reply With Quote
Old 07-31-2016, 07:53 PM   #4 (permalink)
Track Member

Silly Rabbit's Avatar

Join Date: Sep 2013
Location: Brookston, IN
Age: 55
Posts: 683
Drives: '12 PW Touring Sport
Rep Power: 619
Silly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond reputeSilly Rabbit has a reputation beyond repute
Default

When are you going to be at Cars and Coffee? Would love to see this in person. You ever talk with Blake Bylsma, he's in the middle of his turbo build.
__________________
NISMO R Tune Intakes \ Fast Intentions RHFC \ Borla CBE \ EcuTek Tuned\ SPL Camber Arms \ Powertrix Coilovers \ Swift Springs \ Avant Garde \ Wicked CAS \ Morimoto XB Halos \ Custom Fenders \ Hotchkis Sways \ NLP Splitter
Silly Rabbit is offline   Reply With Quote
Old 08-01-2016, 07:01 AM   #5 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

Quote:
Originally Posted by Silly Rabbit View Post
When are you going to be at Cars and Coffee? Would love to see this in person. You ever talk with Blake Bylsma, he's in the middle of his turbo build.
Maybe this weekend. I talk to Blake all the time. His build is nice!
kukpet is offline   Reply With Quote
Old 08-01-2016, 12:58 AM   #6 (permalink)
Base Member

TcRocket's Avatar

Join Date: Sep 2015
Location: Coldwater MI
Posts: 165
Drives: 2010 370z Nismo
Rep Power: 10
TcRocket is on a distinguished road
Default



I just switched mine over to open wastegate damn is it loud

Sent from my Nexus 6P using Tapatalk
carlitos_370z likes this.

Last edited by TcRocket; 08-01-2016 at 07:53 AM.
TcRocket is offline   Reply With Quote
Old 08-01-2016, 07:25 AM   #7 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

Quote:
Originally Posted by TcRocket View Post


I just wish mine over to open wastegate damn is it loud

Sent from my Nexus 6P using Tapatalk
How are your wastegates vacuum hoses connected?
kukpet is offline   Reply With Quote
Old 08-01-2016, 07:00 AM   #8 (permalink)
Base Member

TcRocket's Avatar

Join Date: Sep 2015
Location: Coldwater MI
Posts: 165
Drives: 2010 370z Nismo
Rep Power: 10
TcRocket is on a distinguished road
Default

Holy **** 28 psi that's scary. I'm not on a built motor, that would have destroyed me. But my Ecutek will cut it if it sees 13 psi. I had Hal on dynosty tune it. Did a great job....

Sent from my Nexus 6P using Tapatalk
kukpet likes this.
TcRocket is offline   Reply With Quote
Old 08-01-2016, 07:39 AM   #9 (permalink)
Base Member

TcRocket's Avatar

Join Date: Sep 2015
Location: Coldwater MI
Posts: 165
Drives: 2010 370z Nismo
Rep Power: 10
TcRocket is on a distinguished road
Default



My vacum comes directly from this line on my driver's side charge pipe down to a T by transmission then to both side of both waste gates.



The pressure side of my waste gates comes from turbo up to boost control solenoid then down to a T by transmission then to tops of waste gates.

In addition, make sure all unused ports are plugged. I did not plug H2O ports and I am running boosted performance kit V 2.0

Sent from my Nexus 6P using Tapatalk
kukpet likes this.
TcRocket is offline   Reply With Quote
Old 08-01-2016, 02:01 PM   #10 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

Quote:
Originally Posted by TcRocket View Post


My vacum comes directly from this line on my driver's side charge pipe down to a T by transmission then to both side of both waste gates.



The pressure side of my waste gates comes from turbo up to boost control solenoid then down to a T by transmission then to tops of waste gates.

In addition, make sure all unused ports are plugged. I did not plug H2O ports and I am running boosted performance kit V 2.0

Sent from my Nexus 6P using Tapatalk
Thanks. This is my setup with 4port silinoid
Attached Images
File Type: jpg 20160725_210938.jpg (178.9 KB, 36 views)
kukpet is offline   Reply With Quote
Old 08-01-2016, 02:06 PM   #11 (permalink)
Track Member

jaytirbhaw's Avatar

Join Date: Dec 2009
Location: NYC
Posts: 814
Drives: 350z HR , Nismo 370z
Rep Power: 17
jaytirbhaw has a spectacular aura aboutjaytirbhaw has a spectacular aura aboutjaytirbhaw has a spectacular aura about
Default

Quote:
Originally Posted by kukpet View Post
Thanks. This is my setup with 4port silinoid
might have missed this but whats the exhaust housing on your turbo ? T4?
__________________
2014 Nismo #350 , Built Motor, Top Mount Single Turbo .... 620 whp/ 500 lbs wtq
2012 Track/Drift Z, build coming soon.
Build Thread - http://www.the370z.com/members-370z-...70z-build.html
jaytirbhaw is offline   Reply With Quote
Old 08-01-2016, 05:34 PM   #12 (permalink)
Base Member

kukpet's Avatar

Join Date: Oct 2012
Location: Indianapolis, IN
Posts: 216
Drives: 10 NISMO
Rep Power: 108
kukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond reputekukpet has a reputation beyond repute
Default

Quote:
Originally Posted by jaytirbhaw View Post
might have missed this but whats the exhaust housing on your turbo ? T4?
V-band.82a/r....
its on my list to upgrade but i have no room for t4 divided.
I think biggest t4 tangential is .96 a/r and i don't know how much different it will make compare to .82 vband.
I just don't want bigger turbo lag so decision decision haha
jaytirbhaw and hooey_b like this.
kukpet is offline   Reply With Quote
Old 08-02-2016, 11:42 PM   #13 (permalink)
The370Z.com Sponsor

Boosted Performance's Avatar

Join Date: Feb 2010
Location: Edmonton, AB
Posts: 1,629
Drives: Z's
Rep Power: 3383
Boosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond repute
Default

Quote:
Originally Posted by kukpet View Post
V-band.82a/r....
its on my list to upgrade but i have no room for t4 divided.
I think biggest t4 tangential is .96 a/r and i don't know how much different it will make compare to .82 vband.
I just don't want bigger turbo lag so decision decision haha
Find a way to get that T4 .96 a/r in there. You won't notice any lag, but it will pull like a freight train after 4k rpm....trust me.

The VE of these engines is phenomenal, and they respond extremely well to large turbine housings.
GaleForce, kukpet and hooey_b like this.
__________________
750WHP starting @ $7,500 to the door
FOR DETAILS VISIT: http://www.the370z.com/members/boosted-performance.html
FB: https://www.facebook.com/Boosted-Per...6303179791462/
IG @boostedperformanceyeg
Boosted Performance is offline   Reply With Quote
Old 08-01-2016, 07:41 AM   #14 (permalink)
Base Member

TcRocket's Avatar

Join Date: Sep 2015
Location: Coldwater MI
Posts: 165
Drives: 2010 370z Nismo
Rep Power: 10
TcRocket is on a distinguished road
Default



@ 9.1 psi Ecutek Dynosty tuned. 513 whp 417 wtq. Stock block and internals.

Sent from my Nexus 6P using Tapatalk
carlitos_370z likes this.
TcRocket is offline   Reply With Quote
Old 10-10-2016, 12:21 PM   #15 (permalink)
The370Z.com Sponsor

Boosted Performance's Avatar

Join Date: Feb 2010
Location: Edmonton, AB
Posts: 1,629
Drives: Z's
Rep Power: 3383
Boosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond reputeBoosted Performance has a reputation beyond repute
Default

Nice work, and great numbers for 11.5psi.

How does the .96a/r look over your previous turbine housing...I bet there not much difference in spools.
__________________
750WHP starting @ $7,500 to the door
FOR DETAILS VISIT: http://www.the370z.com/members/boosted-performance.html
FB: https://www.facebook.com/Boosted-Per...6303179791462/
IG @boostedperformanceyeg
Boosted Performance is offline   Reply With Quote
