so does anyone have the belt size and code for the underdrive kit?
|
|
LinkBack | Thread Tools | Display Modes |
06-10-2014, 09:16 PM | #1411 (permalink) |
A True Z Fanatic
Join Date: Feb 2013
Location: Sacramento, CA
Posts: 1,372
Drives: 40th Anniversary
Rep Power: 15 |
so does anyone have the belt size and code for the underdrive kit?
__________________
Are U in Sacramento or Central Valley California? Click here!
Foglight Hardwire in less than 10 minutes! DIY: Automatic VDC off |
06-10-2014, 09:27 PM | #1414 (permalink) |
A True Z Fanatic
Join Date: Feb 2013
Location: Sacramento, CA
Posts: 1,372
Drives: 40th Anniversary
Rep Power: 15 |
hahaha thanks!
__________________
Are U in Sacramento or Central Valley California? Click here!
Foglight Hardwire in less than 10 minutes! DIY: Automatic VDC off |
06-10-2014, 10:03 PM | #1415 (permalink) |
Base Member
Join Date: Mar 2013
Location: Dayton, OH
Posts: 116
Drives: 370z
Rep Power: 12 |
How about now?uploadfromtaptalk1402452215893.jpg
|
06-14-2014, 12:18 AM | #1418 (permalink) | |
Track Member
Join Date: May 2014
Location: Florida
Posts: 877
Drives: Magma Red 370z T+S
Rep Power: 21 |
Quote:
I was able to do the install myself with hand tools and a 4' pipe. You WILL need to remove the radiator fans and move the overflow tank, but not the radiator itself. With those items out of the way, I could release the tension on the belt with my 1/2 breaker bar + 3/8ths adapter (to fit in the tension socket). Then loosen the bolt from the top of the engine bay with a 19mm impact socket attached to the breaker bar, covered by the four foot pipe for leverage. I also had to lock the drive shaft against the frame with the OEM tire iron (this tip is posted somewhere on the forum). I was able to remove the pulley by wedging the breaker bar between the engine and pulley and wiggling it. It eventually slid off without too much force. A pulley puller might be a better choice. The NST pulley slid on with no effort. I didn't install the overdrive alternator pulley, as it appeared that there was no way to remove the OEM pulley without an impact wrench. It spins freely and I was not willing to figure out a way to stop it from spinning, for fear of damaging the alternator itself.
__________________
Competition Clutch|Fast Intentions|Maxbore|NST|Setrab|Stillen|Tomei|Uprev| Z1 Avant Garde|SPC|Stance|Whiteline Aerojacket|Seibon|Tanabe|TRS|TWM Last edited by aszyd; 06-14-2014 at 12:22 AM. |
|
06-16-2014, 03:41 PM | #1420 (permalink) |
Base Member
Join Date: Sep 2010
Location: Long Island
Posts: 213
Drives: '12 6MT/Spt/Trng/Nav
Rep Power: 15 |
Hey guys. Just received my pulley kit today. I ordered black, but was sent blue. This is not a big deal. I ordered the CR-Lite pulleys, and just wanted to make sure that I received the correct pulleys and not the underdrive pulleys. Is there any way to tell? I am only worried b/c I received the wrong color, which could mean that I received the underdrive pulleys instead of the CR-Lite pulleys. Thanks.
|
06-16-2014, 03:44 PM | #1421 (permalink) |
Enthusiast Member
Join Date: Dec 2011
Location: Toronto
Posts: 376
Drives: 2009 PG 370z 6MT
Rep Power: 35 |
I think you got the right one because the openings are different on the ud pulley. Why did you get an alternator pulley if you aren't going ud?
Look back a few posts and you'll see what I mean.
__________________
| Akuma | Motordyne | Z1 | NST | CNT | Stillen | Avant Garde | RJM | Performix | Tint | LED | GTR | Nissan | |
06-16-2014, 09:50 PM | #1423 (permalink) |
A True Z Fanatic
Join Date: Feb 2013
Location: Sacramento, CA
Posts: 1,372
Drives: 40th Anniversary
Rep Power: 15 |
Interesting that they didnt brand their Lite set. you can always put it up to your current pulley and compare the sizing.
__________________
Are U in Sacramento or Central Valley California? Click here!
Foglight Hardwire in less than 10 minutes! DIY: Automatic VDC off |
06-19-2014, 12:54 PM | #1424 (permalink) |
Base Member
Join Date: Sep 2010
Location: Long Island
Posts: 213
Drives: '12 6MT/Spt/Trng/Nav
Rep Power: 15 |
Yes, it is interesting that they didn't engrave their CR-Lite pulleys. It is the same design as the Unorthodox Racing one . Don't have access to the car right now, or else I would have just put it up to my current pulleys and compare the size. Thanks man.
Last edited by PW370z; 06-19-2014 at 12:58 PM. |
06-24-2014, 07:54 PM | #1425 (permalink) |
A True Z Fanatic
Join Date: Feb 2013
Location: Sacramento, CA
Posts: 1,372
Drives: 40th Anniversary
Rep Power: 15 |

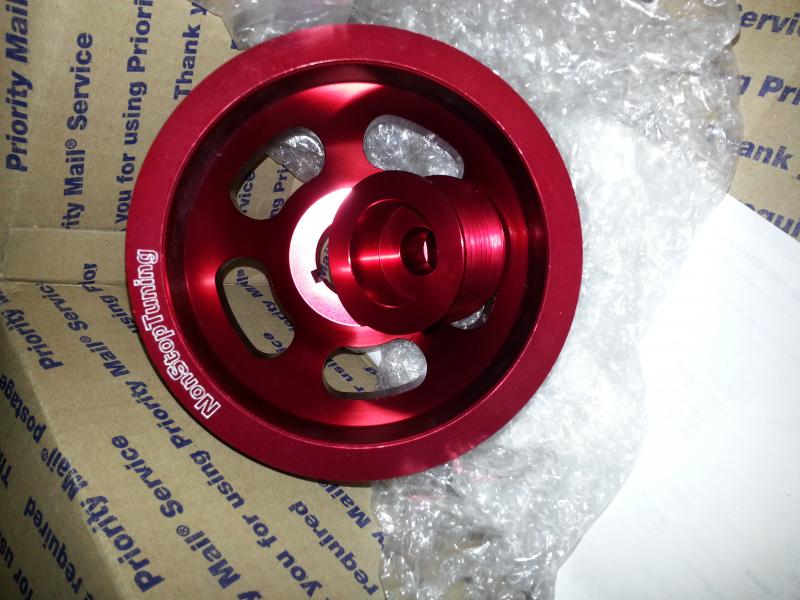

So i got mine a couple weeks ago and the build quality is very nice and clean.
A few words of advise when pulling the old one off.

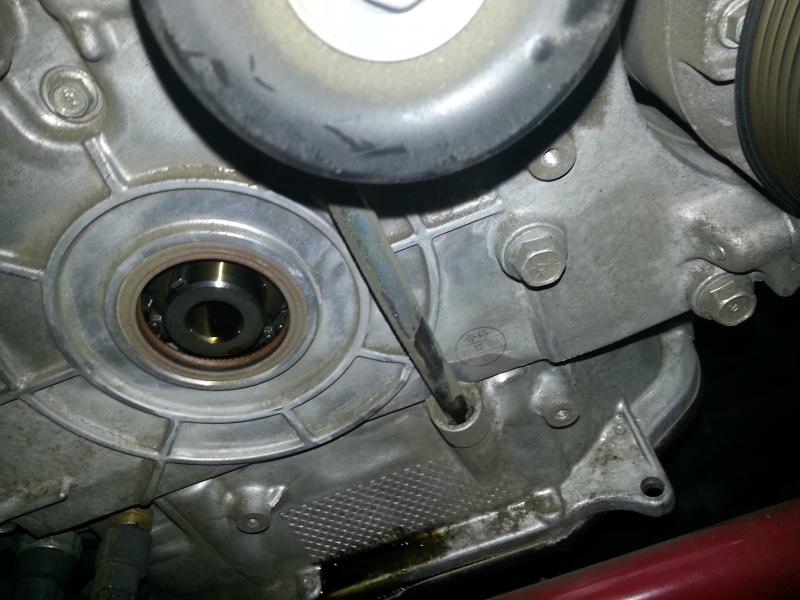

The stock pulley is CRAZY heavy... Losta room with the fan out Make sure you're in 6th gear or this will happen And dont let the wedge rest against the control arm or this will happen
__________________
Are U in Sacramento or Central Valley California? Click here!
Foglight Hardwire in less than 10 minutes! DIY: Automatic VDC off |
