DIY: Custom Brake Ducts

Mozen

Thanks brother. Im waiting on the rest of the hose and ill hook them up directly onto the brake shields. Honestly, although it took some time these are turning out quite well and my total cost will be around $150. That includes having to make the ducts twice for prototypes and paying for the more expensive USPS shipping. Down the road i may build a new duct that fits the entire lower portion but ill wait till i get some boost to figure that out.

Once this is finished the next custom project will be some ways off but...im looking to build my own Diff cooler. Checked out the prices of everything id need and i think i can get the parts similar to the GTM kit for around $400. Considering that their kit is 1200 or so thats a good bit o savings.

__________________
PW 370z | AEM | MISHIMOTO | ARK PERFORMANCE | WHITELINE | NISMO | STILLEN | FORGESTAR | BC RACING | AMS | NON STOP TUNING | CARBONETICS LSD | 4 Point DOM 1.75" SCCA Spec Roll Bar + Harness Bar
CHECK OUT MY BUILD THREAD HERE

370Zsteve

You should show this to the Company that makes the front fascia.

__________________
SOLD MY Z MARCH 2018 - another Core OG moves on - new ride 2019 Z Corvette Grand Sport - no mods necessary but already have eyes on HFC and intakes LOL IT NEVER ENDS.

Mozen

I'll think about it but Zele Japan probably doesn't care lol. Plus if they made them u know it would cost probably around $400 for just the ducts.

Sent from my Nexus 7 using Tapatalk 2

__________________
PW 370z | AEM | MISHIMOTO | ARK PERFORMANCE | WHITELINE | NISMO | STILLEN | FORGESTAR | BC RACING | AMS | NON STOP TUNING | CARBONETICS LSD | 4 Point DOM 1.75" SCCA Spec Roll Bar + Harness Bar
CHECK OUT MY BUILD THREAD HERE

Mozen

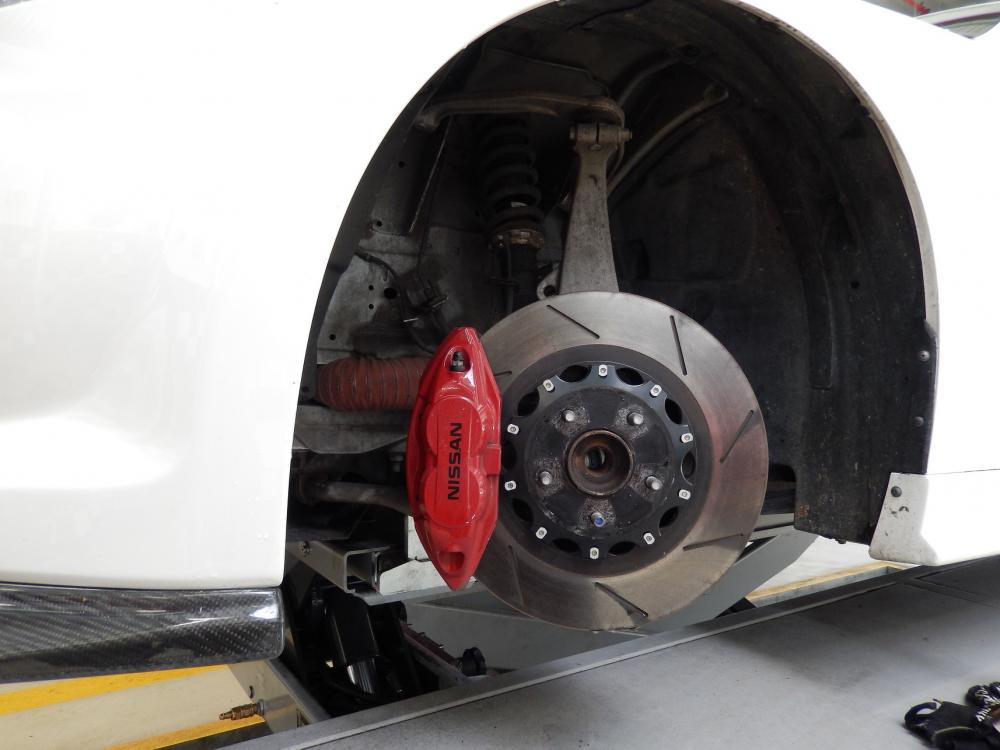

Ok so here are some updates. I was at a career school for a few months there and it forced me to drop the project. Here is where im at!



[IMG][/IMG]

__________________
PW 370z | AEM | MISHIMOTO | ARK PERFORMANCE | WHITELINE | NISMO | STILLEN | FORGESTAR | BC RACING | AMS | NON STOP TUNING | CARBONETICS LSD | 4 Point DOM 1.75" SCCA Spec Roll Bar + Harness Bar
CHECK OUT MY BUILD THREAD HERE

Mozen

My Main concern now is the adapter im building is going to have the rivets too close to the rotor and when turning the wheels it will get pushed against the rotor and score it. For now back to the drawing board.

__________________
PW 370z | AEM | MISHIMOTO | ARK PERFORMANCE | WHITELINE | NISMO | STILLEN | FORGESTAR | BC RACING | AMS | NON STOP TUNING | CARBONETICS LSD | 4 Point DOM 1.75" SCCA Spec Roll Bar + Harness Bar
CHECK OUT MY BUILD THREAD HERE

bleunetizen

this is very similar to what I was going to do.. rivets touching the rotor, cant you just bend the dust shield a bit?

Mozen

I actually riveted the connection at an angle up a bit to give it clearance and it worked. Ill take some pics next time the wheel is off.
