Default DIY: Rear Fog-Lamp "Z" light

**** Completed Pictures to come later today ****

Inspired by Simota and DIY: of complete FOG LAMP install, I decided to pull apart the black thing we get stock to see what I could do with it.

It turns out, the black fog-lamp we get in the US is actually a heavily smoked lens. Behind it is the normal fog lamp housing as well, so that makes this DIY pretty easy.

I had some leftover LED's from DIY: Headlight LED's and blackout, so I decided to wire up a string of 3 and put them in the housing and see how they lit it up. Turns out you could definitely see it in the dark, and you might be able to see it a little bit in the day time as well. Not like you can brake lights, but I just want something subtle down there.

Ok, here is the DIY

Step 1: Follow the directions Simota gave to remove the stock "lamp" DIY: of complete FOG LAMP install

Step 2: bring the housing inside to work on, it's probably more comfortable inside (100 degrees here today)

Step 3: take a small flathead screwdriver and go around the lens and pop it off. Do this slowly, as it is super-glued to the housing. You will probably break it quite a bit around the edges, but as long as you don't crack the visible part of the lens its no big deal. you'll seal it again later with silicone.

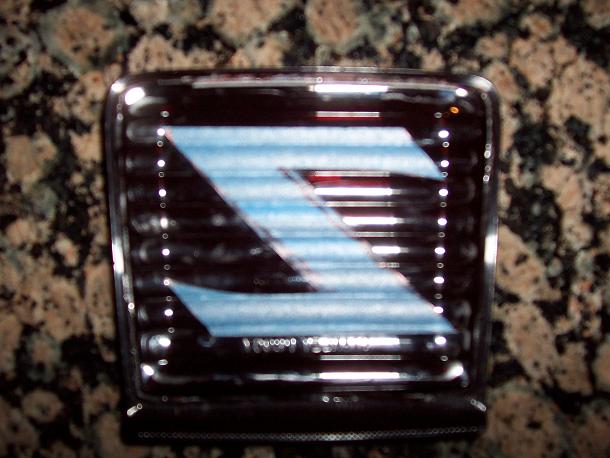

Step 4: once the lens is off, decide what you want it to look like when it is lit up. I wanted the "Z" so I masked off a backwards Z on the inside part of the lamp and then painted the inside part of the housing with krylon fuzion (also leftover from my other DIY). Take your time with the masking and get it exactly how you want it before painting.



Step 5: LED time, wire up a set of 3 LED's, more details in my other DIY, but my wiring was: 12" long red wire -> LED -> 3" green wire -> LED -> 3" green wire -> LED -> 150ohm resistor -> 12" long black wire. Test your string with a 12v battery to ensure it is working.

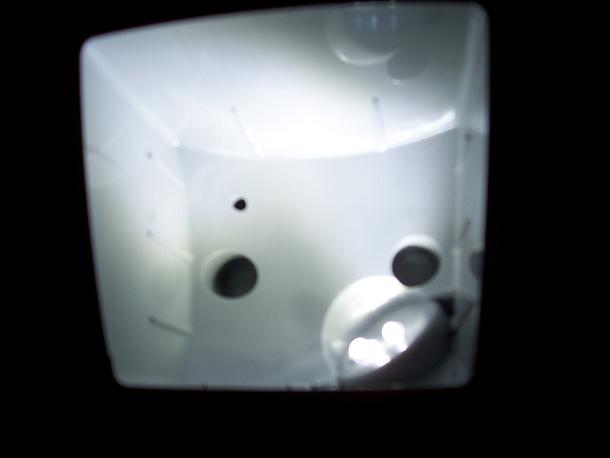

Step 6: Time to mount the LED's. There is a flat circular part in the back bottom side of the housing that looks like it could be drilled out for any auto-type light to be installed. I just drilled 3 3/16th inch holes in that circle and pushed the LED's into the holes and hot glued them in. Tuck the wires as best as you can behind there, then test fit the housing backside over it and make sure you have optimal clearance.




Step 7: Once the paint has dried on your lens, remove the masking and then take a light bead of silicone and adhere it back to the housing exactly where it was. Your housing is now complete, and ready to re-install (after drying time of course)

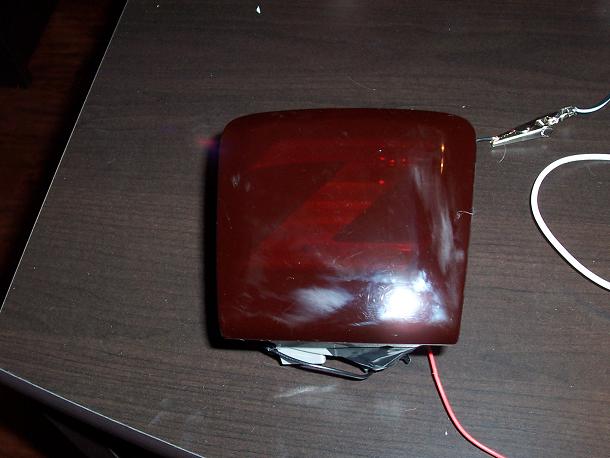

LED's off, with flash

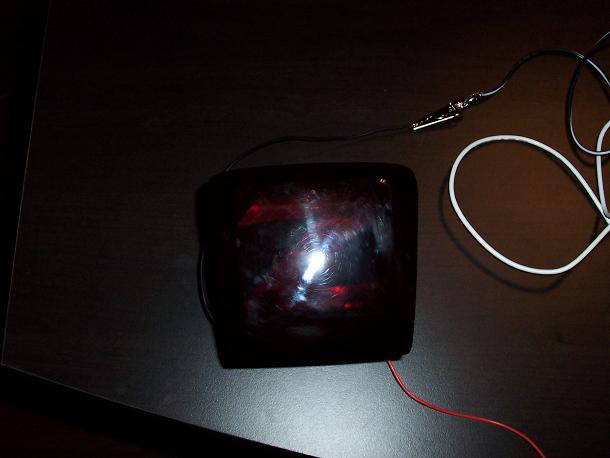

LED's on, with flash (is brighter than it looks)

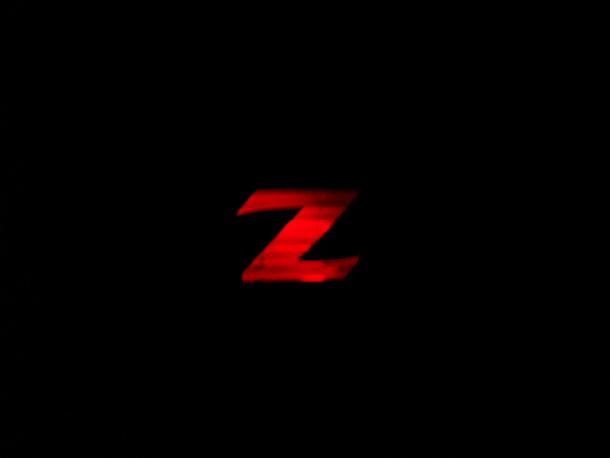

LED's on, all lights and flash off


Step 8: Time to wire, you can get creative like Simota did with flashers and everything if you want, but I just did the easy route and tapped into the license plate light and ran the wire down the inside of the back bumper. I used solder and electrical tape, but connectors are just fine as well

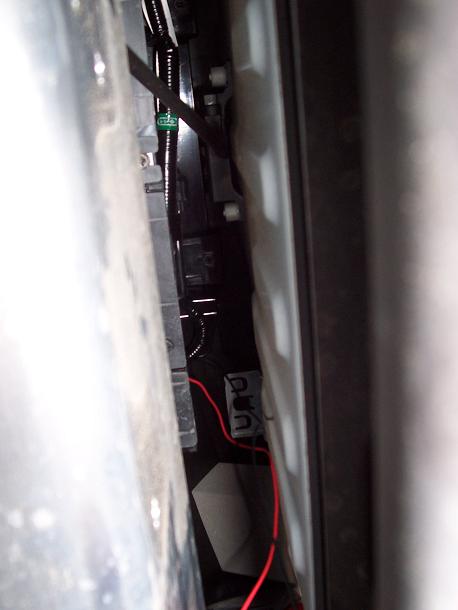

Step 9: you should have wire hanging down behind the back bumper down below it so you can easily get to them, then on your housing 12 inches of wire to work with as well. Re-install your housing, make sure all of your wiring stays easily accessible. Those clips are a PITA, so take your time

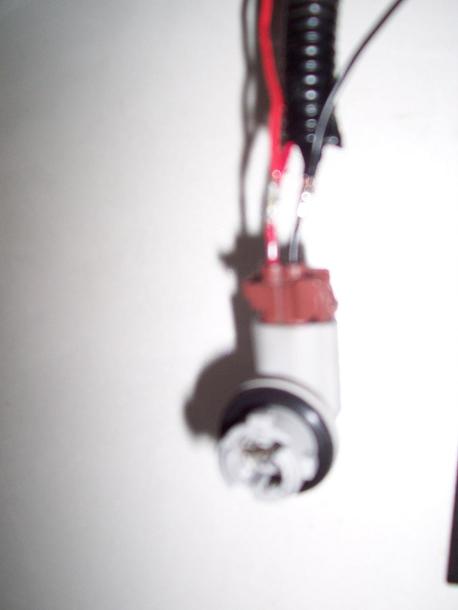

Step 10: use some sort of connector between the housing wire and the license plate light wire and now you should have power anytime the parking lights are on. MAKE SURE YOU NEATLY TUCK THE WIRING. remember, your exhaust is right there and could easily melt wiring if you don't tuck it in there well enough, so this is important.

Now you are done, with a new light in the back!
markracer007 likes this.

Last edited by Caravanshaka; 07-04-2009 at 04:53 PM.
Caravanshaka is offline   Reply With Quote
Old 07-04-2009, 05:19 PM   #2 (permalink)
A True Z Fanatic

CBRich's Avatar

Join Date: Apr 2009
Location: SC
Posts: 2,464
Drives: 370Z
Rep Power: 544
CBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond reputeCBRich has a reputation beyond repute
Default

Brilliant. Definitely gonna need to do this.
CBRich is offline   Reply With Quote
Old 07-04-2009, 07:19 PM   #3 (permalink)
Enthusiast Member

GreenJalapeno's Avatar

Join Date: May 2009
Location: La Canada Flintridge
Posts: 355
Drives: 10 Nissan 370Z PW M6
Rep Power: 291
GreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond reputeGreenJalapeno has a reputation beyond repute
Send a message via AIM to GreenJalapeno
Default

any on car shots? :P
GreenJalapeno is offline   Reply With Quote
Old 07-04-2009, 11:38 PM   #4 (permalink)
I shake Caravans

Caravanshaka's Avatar

Join Date: Apr 2009
Location: north Dallas
Posts: 9,517
Drives: everyone crazy
Rep Power: 42
Caravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond repute
Default

during the day you can barely see it, probably won't show it in pictures. if it is off you can't tell anything was done, looks stock. You can always add more LED's, or use another kind of bulb in there to get a little more brightness.

At night it is subtle but noticeable. was pretty busy tonight so couldn't get pictures. hopefully tomorrow night

Last edited by Caravanshaka; 07-04-2009 at 11:58 PM.
Caravanshaka is offline   Reply With Quote
Old 07-04-2009, 11:56 PM   #5 (permalink)
Retired admin

frost's Avatar

Join Date: Dec 2008
Location: Winterfell
Posts: 106,613
Drives: Your Wife Crazy
Rep Power: 0
frost frost frost frost frost frost frost frost frost frost frost
Default

Neat idea.
frost is offline   Reply With Quote
Old 07-05-2009, 05:29 AM   #6 (permalink)
A True Z Fanatic

simota1's Avatar

Join Date: May 2009
Location: Dededo, Guam
Posts: 6,642
Drives: solid red 370z 6mt
Rep Power: 405
simota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond repute
Default

haha thanks caravanshaka!!! i love the idea... i wanna mod my fog lamp to leds u think u can teach me how to do that?
simota1 is offline   Reply With Quote
Old 07-27-2009, 01:59 PM   #7 (permalink)
I shake Caravans

Caravanshaka's Avatar

Join Date: Apr 2009
Location: north Dallas
Posts: 9,517
Drives: everyone crazy
Rep Power: 42
Caravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond reputeCaravanshaka has a reputation beyond repute
Default

Sorry I haven't responded here in a while, completely forgot about it

Simota, if you know the bulb number you can easily find a replacement on v-leds website that is just a quick plug-in

Also, I have found that the 3 LED's I have in there seem to be a little too dim to easily see the "Z" at night. It's definitely there, but very subtle as-is. I'm contemplating either adding 3 more LED's, or possibly making a plate behind the lens that I can put 9 LED's in a Z shape so it lights up really bright.
__________________
____________________ PROJECT DiaD - Sold but not forgotten!
The first testicular guard, the "Cup," was used in Hockey in 1874 and the first helmet was used in 1974. That means it only took 100 years for men to realize that in order to work the penis, the brain must remain whole.
Caravanshaka is offline   Reply With Quote
Old 07-27-2009, 06:37 PM   #8 (permalink)
A True Z Fanatic

simota1's Avatar

Join Date: May 2009
Location: Dededo, Guam
Posts: 6,642
Drives: solid red 370z 6mt
Rep Power: 405
simota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond reputesimota1 has a reputation beyond repute
Default

got it man... i actually ordered a set on ebay... like 2 days ago... hopefully it looks kool... like u can se the leds.. cuz honestly it already pretty dang bright with out it.. lol
simota1 is offline   Reply With Quote
Old 07-28-2009, 01:24 PM   #9 (permalink)
Base Member

AJChubbs's Avatar

Join Date: May 2009
Location: Washington DC
Posts: 32
Drives: 09 370Z Red A/T
Rep Power: 16
AJChubbs is on a distinguished road
Default

Freggin Z store still hasnt sent me mine yet!
AJChubbs is offline   Reply With Quote
Old 08-02-2009, 06:20 PM   #10 (permalink)
Base Member

Romanowski's Avatar

Join Date: Jul 2009
Location: Hawaii
Posts: 201
Drives: 09' Nissan 370Z
Rep Power: 16
Romanowski is on a distinguished road
Default

Looks great. Thanks for the write up
Romanowski is offline   Reply With Quote
Old 03-05-2012, 02:13 PM   #11 (permalink)
Premium Member

JerryB5's Avatar

Join Date: Jan 2012
Location: Gardnerville, NV
Age: 77
Posts: 7
Drives: 2009 370Z Touring
Rep Power: 13
JerryB5 is on a distinguished road
Default Did this !! (With small mod)

Ok, I liked this idea so much (Thanks Caravanshaka), I did the mod with a small change some may find useful. The only real change was to use a 194 lamp socket I got from O'reilly's, that I installed in the dummy lamp assembly. It allows you to change the light and use different ones (194 base) for brightness control.

The hardest part was making the socket hole in the lamp casing and modding the socket to fit the thickness of the plastic case (its made to plug into sheet metal).

The last pic is with a standard 194 incandesent lamp taken in the garage in daylight. I have some leds on order to try them also.
Attached Images
File Type: jpg IMG_2090Z_Light_sml.jpg (364.1 KB, 154 views)
File Type: jpg Z_light2_sml.jpg (263.5 KB, 138 views)
File Type: jpg Z_Light3_sml.jpg (59.5 KB, 398 views)
MEZZZER and markracer007 like this.
JerryB5 is offline   Reply With Quote
Old 03-13-2012, 02:37 PM   #12 (permalink)
Enthusiast Member

hansoac's Avatar

Join Date: Feb 2011
Location: Toledo
Posts: 497
Drives: 09 370z Sport CY
Rep Power: 14
hansoac is on a distinguished road
Default

Looks awesome Jerry!!
hansoac is offline   Reply With Quote
Old 12-23-2012, 10:38 PM   #13 (permalink)
A True Z Fanatic

JARblue's Avatar

Join Date: Mar 2011
Location: Austin, TX
Age: 43
Posts: 36,450
Drives: 11 Z34, 98 E36 M3
Rep Power: 2684440
JARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond repute
Default

I just did this mod using a 48 LED panel inside the dummy lens and housing, and I am quite please with the results. It is currently wired up to come on with the parking lights, though I plan to wire up a switch to the center console as well as flash it in reverse whenever I have time to figure it all out. I will definitely post if I do it.

Here are some a few things I did differently, and you can see a few more pics in my album here. I should have taken more

OP's Step 5. I used a 48 LED panel which came with adhesive on the back, so I mounted it to what is the ceiling inside the housing when the fog light is installed. This way you never see the LEDs unless you're practically lying on the ground.

OP's Step 6. I'm not sure if it's the flash, but my housing was much more gray than the OP's. I had some Rustoleum gloss white laying around, so I spray painted it with 2 coats for brighter reflection. I then ran the wiring through the tiny hole in the housing where it has the black cap on the outside. I decided to pry off the cap, run the wiring through the hole, and replace the cap over the wiring.

OP's Step 10. I ran the wiring between the metal and styrofoam of the rear bumper to keep it away from the exhaust.

[/SPOILER]
__________________

2011 370Z 6MT Sport Gun Metallic | ARC | CJM | Ecutek | FI | Fujimura | R2C | SPL | Stillen | TWM | Z1 | ZSpeed |
JARblue is offline   Reply With Quote
Old 04-09-2013, 01:48 AM   #14 (permalink)
Base Member

Join Date: Mar 2013
Location: IN
Posts: 152
Drives: 09 370z
Rep Power: 12
Naum16 is a glorious beacon of lightNaum16 is a glorious beacon of lightNaum16 is a glorious beacon of lightNaum16 is a glorious beacon of lightNaum16 is a glorious beacon of lightNaum16 is a glorious beacon of light
Default

Where do you purchase one if these if you don't mind me asking
Naum16 is offline   Reply With Quote
Old 04-09-2013, 08:07 AM   #15 (permalink)
A True Z Fanatic

JARblue's Avatar

Join Date: Mar 2011
Location: Austin, TX
Age: 43
Posts: 36,450
Drives: 11 Z34, 98 E36 M3
Rep Power: 2684440
JARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond repute
Default

This is not a purchased item - it comes stock on US models. The fog light does not come standard with US models. Therefore, this empty housing and smoked cover is provided in place of the fog light. Caravanshaka and I pulled the cover off the housing (it is glued in place), and inserted some form of lighting in the empty housing, ran the wires out the back, and glued the cover plate back in place after spray painting the Z on it.
MEZZZER likes this.
__________________

2011 370Z 6MT Sport Gun Metallic | ARC | CJM | Ecutek | FI | Fujimura | R2C | SPL | Stillen | TWM | Z1 | ZSpeed |
