DIY: 370Z Lowering Spring Install


IF YOU FIND THIS GUIDE HELPFUL, GIVE ME SOME REPPPP!! :-)

Hey guys, I picked up a set of TEIN lowering springs, and since I searched around for a DIY and couldn't find one, I decided to make one!

Tools required.
- Metric Socket Set
- Breaker bar
- Ratchets
- Metric Wrenches
- Spring compressor
- Jack and Jack Stands
- Vice

Recommended:

- Car Lift
- Air tools
- Pizza & Beer

Install time (with all of the right tools and a lift): 2.5 hrs (with pizza and beer breaks)
Install time (estimated without a lift and no air tools): 4.5hrs
Difficulty: (scale 1-10) Solid 2 TEIN Springs (4 if you don't have access to a lift and air tools)
Solid 4-5 if you have different springs, (Eibach, Megan,ect)
Camera: Nikon D60 w/speedlite

For this guide, I used TEIN S-Tech springs, but the idea should be the same for all other brands of springs.

**Update**

Different springs, other than TEINs seem to be wound closer together so there is some difficulty if you don't have the proper thin spring compressor. Make sure you compress enough of the spring so that you can put the hat back on. Because of that, I'm going to update the difficulty.

Stock ride height before
http://i51.photobucket.com/albums/f3...Z/efed10a8.jpg

Front
http://i51.photobucket.com/albums/f3...Z/962f1db0.jpg

Rear
http://i51.photobucket.com/albums/f3...Z/a4344c05.jpg

Removal of the front struts

Step 1.
Loosen all of the lug nuts. This is generally easier to do if you don't have the car in the air. Break them free on the ground so you don't have to hold the wheel from turning.
http://i51.photobucket.com/albums/f3...Z/2aae1d8f.jpg

Step 2.
Put the car on the lift, or jack up the front. **Make sure you visit the OEM manual for the proper jackpoints**
http://i51.photobucket.com/albums/f3...Z/4fe3ec70.jpg

Step 3.
Remove the wheel and keep track of your lug nuts. :p
http://i51.photobucket.com/albums/f3...Z/12c62fdd.jpg

http://i51.photobucket.com/albums/f3...Z/9b21365e.jpg

Step 4.
Pull the ABS wiring off of the lower strut mount.
http://i51.photobucket.com/albums/f3...Z/264b10e0.jpg

http://i51.photobucket.com/albums/f3...Z/93116dd9.jpg

Step 5.
Remove the 12mm nut holding the brake line block on the other side of the lower strut.
http://i51.photobucket.com/albums/f3...Z/919d893e.jpg

**NOTE** I held the block with a wrench because the bolt was so tight, it wanted to bend the bracket. Hold it while loosening the bolt so you don't bend or break anything.

Step 6.
Remove the 17mm lower control arm bolt & 14mm sway bar link
http://i51.photobucket.com/albums/f3...Z/3fdcec5b.jpg

Step 7.
Remove the 14mm lower strut mount plate bolts
http://i51.photobucket.com/albums/f3...Z/7bb01a8f.jpg

http://i51.photobucket.com/albums/f3...Z/f485d13b.jpg

http://i51.photobucket.com/albums/f3...Z/8918b279.jpg

Step 8.
Remove the 12mm upper strut mount nuts
http://i51.photobucket.com/albums/f3...Z/65b6a1ee.jpg

http://i51.photobucket.com/albums/f3...Z/fd8a5f54.jpg

Step 9.
Remove the strut.

*NOTE: You may have to have a buddy pull down on the knuckle to allow enough room for the strut to come out. You can the struts out without removing any other parts.

http://i51.photobucket.com/albums/f3...Z/5557e474.jpg


Removal of factory springs
http://i51.photobucket.com/albums/f3...Z/c70c5f07.jpg

Step 10.
This is probably the hardest part of the install. Hold the strut in the vice, apply spring compressors and compress the springs. Once the springs are fairly compressed, remove the 14mm nut holding the strut top on. Impact wrenches are your friend.

http://i51.photobucket.com/albums/f3...Z/43cf647a.jpg

Once the top hat comes off, remove the spring and decompress the OEM spring.

http://i51.photobucket.com/albums/f3...Z/79842729.jpg

http://i51.photobucket.com/albums/f3...Z/0591289e.jpg

Step 11.
Time to install the new lowering spring on the stock strut. I can't speak for all brands of springs, but the TEIN springs must be compressed in order for you to be able to put the top hat back on. So....

http://i51.photobucket.com/albums/f3...Z/20c7394a.jpg

Installation of the top hat is the reverse of removal. Put the hat back on, and make sure you put the hat back on the right way. It has to sit on the spring a certain way, look on the rubber piece and you'll see what I mean.

TEIN Spring - OEM
http://i51.photobucket.com/albums/f3...Z/d1312972.jpg

Both done and ready to go back in, installation is reverse of removal. Make sure you impact all of the lower control arm bolts.

http://i51.photobucket.com/albums/f3...Z/4a5ec1c2.jpg

Done.
http://i51.photobucket.com/albums/f3...Z/5b93137a.jpg


Rear Spring Removal & Installation

Step 12.
Remove the rear wheel (keep track of your nuts!) and support the car on a jack and jack stands or use a car lift. (as pictured)

http://i51.photobucket.com/albums/f3...Z/f0aef3c6.jpg

Step 13.
Support the rear spring perch with a jackstand.

http://i51.photobucket.com/albums/f3...Z/b10526d0.jpg

Step 14.
Remove the lower perch nut and bolt and jack (or raise) the car up slowly to let the spring decompress.

http://i51.photobucket.com/albums/f3...Z/265f9ffd.jpg

http://i51.photobucket.com/albums/f3...Z/80a38f9e.jpg

Step 15.
Pull the lower perch down and pull out the spring. The rubber bottom part may come out with the spring, make sure you put it back in and align it properly.
http://i51.photobucket.com/albums/f3...Z/52735874.jpg

http://i51.photobucket.com/albums/f3...Z/7ff55f55.jpg

Step 16.
Install the spring back into the perch and lower the car back down to compress it. Reinstall the lower perch bolt and nut.

http://i51.photobucket.com/albums/f3...Z/c9bcfc19.jpg

Step 17.
Reinstall wheels and torque to proper specs.


Front w/ TEIN Springs.
http://i51.photobucket.com/albums/f3...Z/4b9f87de.jpg

Rear w/TEIN Springs
http://i51.photobucket.com/albums/f3...Z/1e71d3f2.jpg

That's it! Go over all of your bolts and lug nuts, test drive the car for any squeaks, rattles or odd sounds. If everything is good, enjoy!

I'll be doing another DIY front lip install soon, if this is helpful, give me rep!

:happydance:

-David

Very nice man!

Thanks!!

Nice job!

Might want to mention to use a 6 point socket set and NOT a 12 point! I stripped bolts and could not remove the lower shock bracket without one. Made my install a real PITA. But subsequent installs went very smoothy.

Also I had to remove the strut bar to get access to the top shock bolts--not sure how you did it without doing this!!!

I didn't have any issues with it removing the upper strut nuts with my snap on ratchet. It make have been a little easier to do by removing the brace, but it would have cost me more time to take it off, than it would have to just leave it on and unscrew the nuts.

Generally, as a rule of thumb you don't ever want to use a 12 point socket on anything that isn't a 12 point head. You will round bolts off with the quickness.

Thanks!!

Well it would of been nice to know for myself as I wasted several hours of time, sweat and aches! I had to go out and buy a 6 point socket set when It was mentioned to me. So if this helps one person then I will feel better... :)

Nice to see a spring install diy.

I think a difficulty of 2 out of 10 is misleading for anyone without a lift, power tools, and all the other tools a garage has. For the rest of us with the few tools and doing it solo, I think a 6 out of 10. Also I recommend people save themselves the time and grief and take it to sears or a garage and pay $50 to get the springs switched out. There's a guy on this forum who stripped the seal in his strut doing it himself.

Ok... maybe my idea of it being an easy install gives a little bias.

Taking into account having to use jacks and hand tools, I can't see it being more than a 4... mainly for time sake.

I build cars from the ground up that take hundreds of hours to complete, so changing springs isn't anything to do.

I'll make a note about the level of difficulty.

Thanks for your input.

Hey TypeOne.... Was your front alignment ok...I see you didn't change your front upper camber control arms...I was told one would have to install adjustable one for proper alignment :confused:

The alignment seems fine.. rides like it did before. Doesn't pull or shake.

I can say that it does have a noticeable amount of negative camber with the stock UCAs.

If you wanted to have the camber set to factory specs to reduce irregular tire wear, I'd get a set of adjustable camber arms.

I plan on getting new wheels and tires so I'll change out the arms when the time comes.

Great DiY! Thank You for taking the time to put this together.
A well deserved rep to you Sir. :tiphat:

Great write up! I could have used this a couple of weeks ago.

One more thing to mention. Make sure you get the top hat back on the in the same position with the strut bottom. If it's not lined up you will have a hard time getting the strut/spring back in the car.

Would you guys have any ideas why the front Camber would be way off after an install like this? I am getting -1.2 on driver side, and -1.8 on passenger side. What could go wrong on the install to throw off the camber so much on one side? I do not think there is any damage to my suspension.

It's hard to say... without anything really being adjustable, the only thing I can think of is that you've got one of your springs not sitting right.

Is the height exactly the same on both sides?

I would maybe try to loosen the suspension up and re-tighten everything.. it might help get that little bit of camber back.

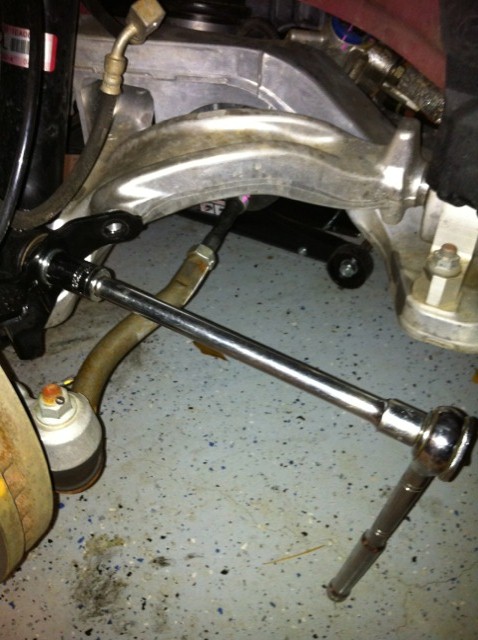

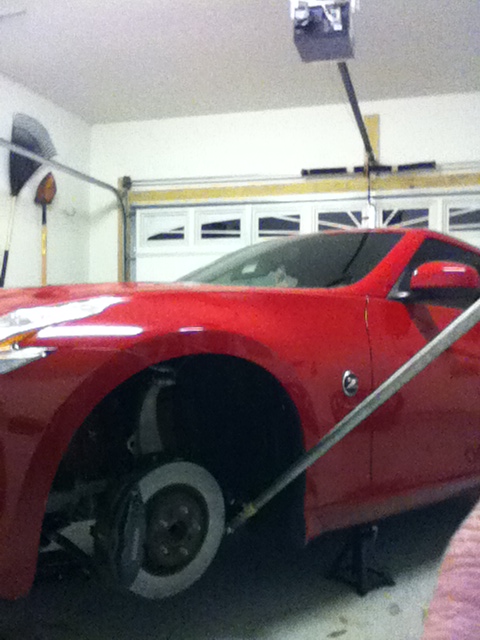

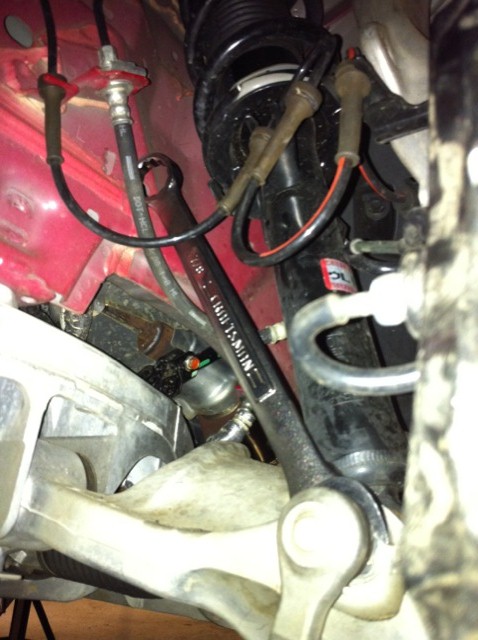

Let me just add that if you don't have an impact gun then the lower strut bolt will be a serious pain. I was able to break the torque on it by placing a 22mm wrench on the side closest to the front of the car. Get it on there good and make sure it stays aligned during the whole process. On the back side go at it with a 19mm socket, 12" extension, 1/2" ratchet, and a nice size pipe. While yanking on the bar make sure the 22mm stays wedged in and give it a tug. Good luck.
