Tesla styled screen setup

AntiVenom · 07-25-2015, 07:13 AM

it might sound a bit like hyperbole, but i am utterly amazed by the great progress you've made in a relatively short time. though when i say short time it isn't to take away from all the hours you've invested in front of computer screen to clean up/modify the model.

not to mention, i've worked on cars my whole life (first my dad's cars, then my older brother's, and finally mine). the ability to create modified versions of a cars plastic components, has always been out of reach of the common guy. watching this project develop is akin to watching the future unfurl in front of my eyes. the possibilities are essentially endless.

as far as the tabs themselves. they look super clean and correctly positioned.

asorg31 · 07-25-2015, 05:00 PM

Quote:

Originally Posted by AntiVenom

it might sound a bit like hyperbole, but i am utterly amazed by the great progress you've made in a relatively short time. though when i say short time it isn't to take away from all the hours you've invested in front of computer screen to clean up/modify the model.

not to mention, i've worked on cars my whole life (first my dad's cars, then my older brother's, and finally mine). the ability to create modified versions of a cars plastic components, has always been out of reach of the common guy. watching this project develop is akin to watching the future unfurl in front of my eyes. the possibilities are essentially endless.

as far as the tabs themselves. they look super clean and correctly positioned.

Wow hey I really appreciate that man!! I have definitely been pushing hard to do this dash for a while now, and it has been tough. But I have gotten through the hardest parts now. I finished modeling all the tabs this afternoon, and I will post a couple pictures later.

I'm really thankful to have such a supportive community to keep me on track lol. The next thing on the table for the weekend is to clean up some rough patches on the backside. Then attach all the tabs. It's not far now from the redesign for the custom monitor. I am definitely getting close to the point of no return with picking the final monitor though... Once I lay out the area I can not adjust easily for other monitors.

asorg31 · 07-28-2015, 12:18 PM

Quote:

Originally Posted by FairladyZ40th

Dude cortana

and make a 3d model chick that appears on your screens "ready to serve" man that would just be the cherry on top

Sent from my iPhone using Tapatalk

Windows 10 comes out tomorrow, and I have a free upgrade for my home PC. It looks like Cortana will be integrated into it. I am hoping that I may be able to use her for voice commands and much more but we will see about that when I get there.

That may not be as far off as we thought lol!!

theDreamer · 07-28-2015, 12:40 PM

She will be able to handle a lot of commands from what I have read, but will require an active internet connection to do so.
Basic commands such as open X program will work without internet but anything major will need a connection.

asorg31 · 07-28-2015, 08:11 PM

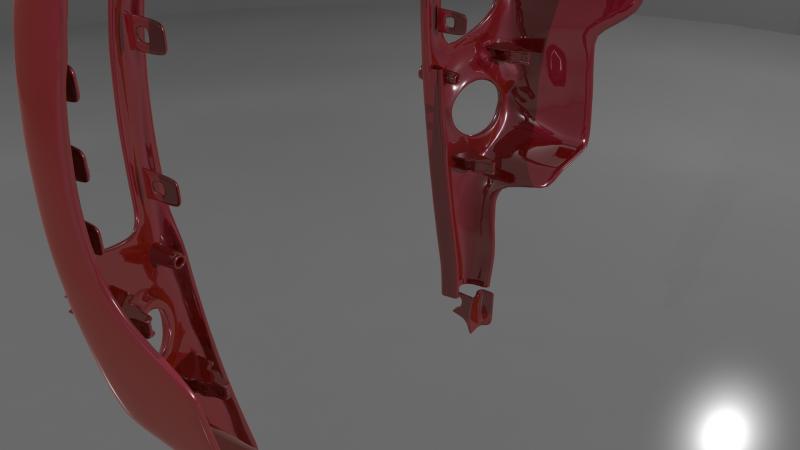

As promised here are a few renders of the progress this week and weekend. It may be into next week before I have some more work to show since I am making my move into DC over the weekend. And there is still a lot of packing to do. I will keep diligent of the responses to the thread though so let me know what you think of the progress!!

asorg31 · 07-28-2015, 08:13 PM

Quote:

Originally Posted by theDreamer

She will be able to handle a lot of commands from what I have read, but will require an active internet connection to do so.
Basic commands such as open X program will work without internet but anything major will need a connection.

That kind of what I was thinking maybe voice to Nav if I'm lucky. And things of that sort. I will definitely be playing around with that though.

Nillaz · 07-28-2015, 08:53 PM

Quote:

Originally Posted by asorg31

As promised here are a few renders of the progress this week and weekend. It may be into next week before I have some more work to show since I am making my move into DC over the weekend. And there is still a lot of packing to do. I will keep diligent of the responses to the thread though so let me know what you think of the progress!!

Looking good Anthony. Things seems to be coming along nicely!

KoolKarmaJoe · 07-29-2015, 05:03 AM

Quote:

Originally Posted by Nillaz

Looking good Anthony. Things seems to be coming along nicely!

I agree. I look forward to read each of your updates on the project Anthony.

Sent from my XT1254 using Tapatalk

KoolKarmaJoe · 07-29-2015, 07:22 PM

Very cool picture album you put together Anthony, KUDO's to you!

theDreamer · 07-30-2015, 11:15 AM

Quote:

Originally Posted by asorg31

That kind of what I was thinking maybe voice to Nav if I'm lucky. And things of that sort. I will definitely be playing around with that though.

Just read that Windows 10 will allow its maps program to download maps for offline use and provide directions. Not sure if this will work with Cortana offline by asking for directions but good to know that you will have GPS without needing data.

asorg31 · 08-05-2015, 10:22 AM

I am officially moved in, unpacked and back to designing. It is taking some time with the nitpicking job of adjusting each of the points around individually but it is nearly there. The front is in great shape. Main point of focus for me right now is to fix the port for the ignition button to mount and adjust around that area.

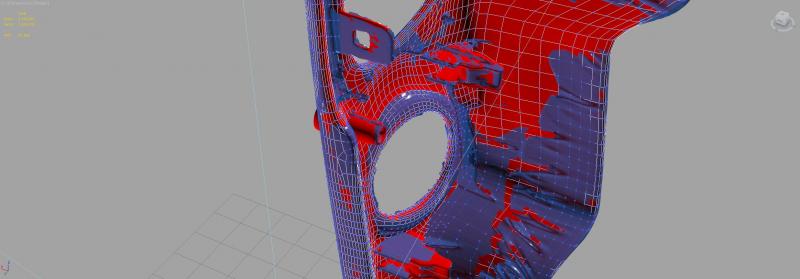

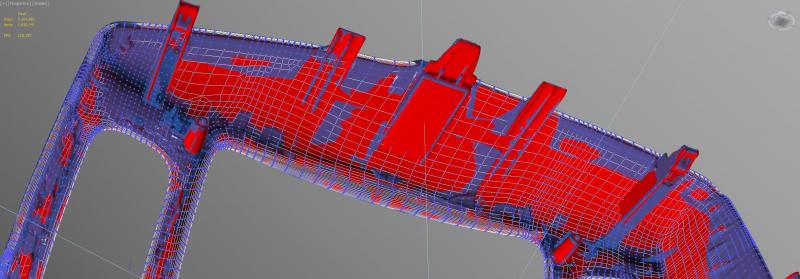

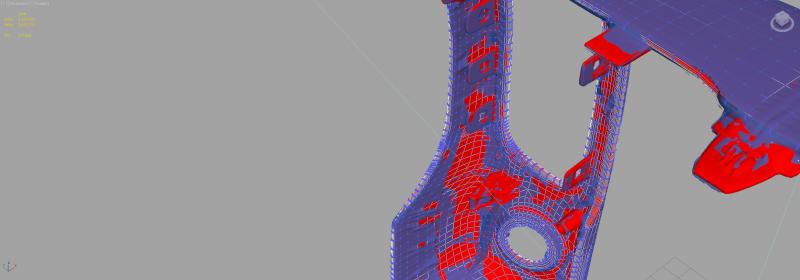

I took a few screenshots of the amount of vector points I am dealing with to make this happen. You may understand why this boring part is taking so long, especially if you think that I'm moving these mostly one at a time...

I overlayed the original scan in a blue so you can see where the cloth wraps around the stock dash. And also, you can see the low spots that I still have to work through. As a bonus it make the dash look like a spider-man suit LOL!

Once I finish the renders I will post them up here later today!

FairladyZ40th · 08-05-2015, 10:28 AM

F**k me man so much detail it hurts to think about it X( haha it's looking quite nicely from where you first started man very nice indeed!

I mean I'm no pro or anything but that looks on point brotha! Good work haha.

And hey I also wanted to add another idea to consider. Maybe you could have an option where the ignition button can be changed colors with LEDs or something? Or sell the product with material options such as Carbon Fiber, different leather types/colors and stitching too? Just a suggestion for later down the road man.

Sent from my iPhone using Tapatalk

KoolKarmaJoe · 08-05-2015, 10:49 AM

Wow you are really moving forward nicely! I like the "Spider Man" look, LOL.

Sent from my XT1254 using Tapatalk

NickTurnon · 08-05-2015, 11:12 AM

Quote:

Originally Posted by FairladyZ40th

F**k me man so much detail it hurts to think about it X( haha it's looking quite nicely from where you first started man very nice indeed!

I mean I'm no pro or anything but that looks on point brotha! Good work haha.

And hey I also wanted to add another idea to consider. Maybe you could have an option where the ignition button can be changed colors with LEDs or something? Or sell the product with material options such as Carbon Fiber, different leather types/colors and stitching too? Just a suggestion for later down the road man.

Sent from my iPhone using Tapatalk

Nothing some vinyl wrap or a paint can can't handle. I think just having a black bezel gives everyone the option to have it look stock or they can change the color to whatever they want

If you wanted constant wifi, you'd have to have one of those wireless cards, and they are $40 or so a month. So, unless you're a heavy commuter, it may not be worth it

asorg31 · 08-05-2015, 11:38 AM

Quote:

Originally Posted by FairladyZ40th

F**k me man so much detail it hurts to think about it X( haha it's looking quite nicely from where you first started man very nice indeed!

I mean I'm no pro or anything but that looks on point brotha! Good work haha.

And hey I also wanted to add another idea to consider. Maybe you could have an option where the ignition button can be changed colors with LEDs or something? Or sell the product with material options such as Carbon Fiber, different leather types/colors and stitching too? Just a suggestion for later down the road man.

Sent from my iPhone using Tapatalk

Hey thanks so much man! There has been too many hours spent on this lol!

I have been looking into aftermarket starter switches with LED lights so that's definitely a possibility! I kind of agree with @NickTurnon right now. I'm having to decide whether to get the dash piece injection molded through my local contact because of the complexity of the rear tabs. Or make molds to do carbon fiber or fiberglass, which could be fabric/vinyl wrapped, ect.

It all comes down to those pesky tabs making things so complicated...
